STSPIN32F0ATR - STMicroelectronics

Description: Advanced BLDC controller with embedded STM32 MCU

Download STSPIN32F0ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

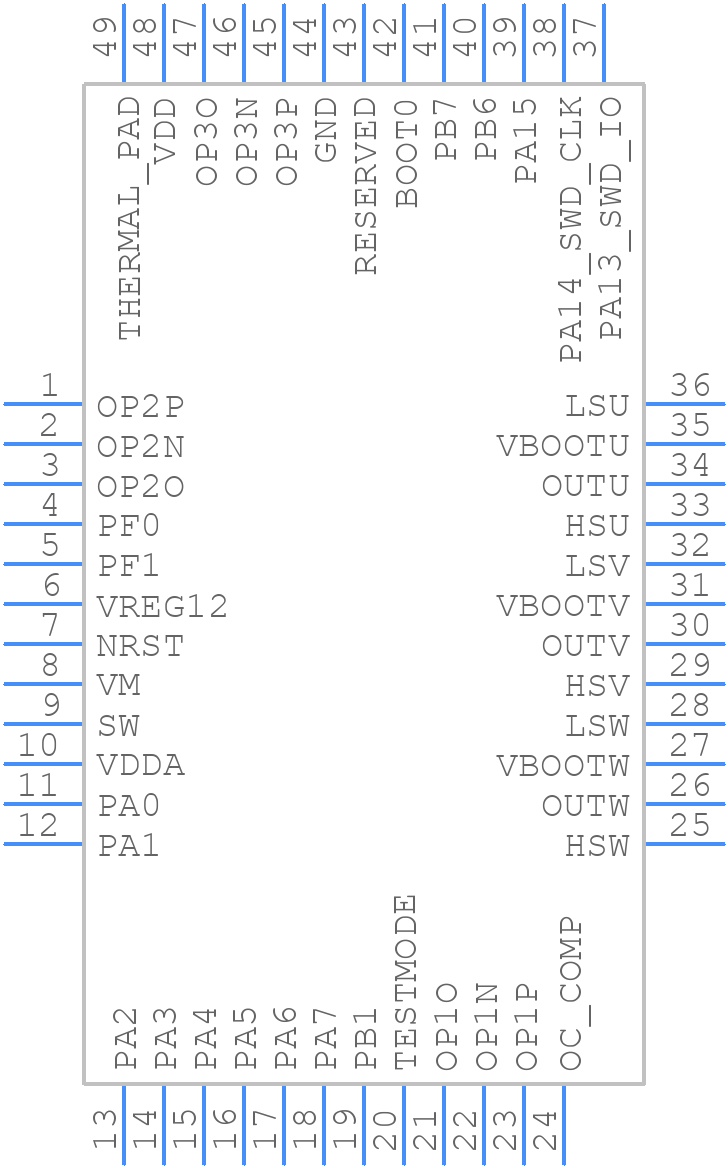

STSPIN32F0ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN32F0ATR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN48_1
click to zoom
3D Models
STSPIN32F0ATR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN48_1
click to zoom

STSPIN32F0ATR Details

  • Manufacturer Part Number:

    STSPIN32F0ATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2017-09-22

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    6.7 V

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STSPIN32F0ATR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STSPIN32F0ATR is 32 kHz, but it can be overclocked up to 64 kHz with reduced performance.
  • To configure the STSPIN32F0ATR for 3-phase brushless motor control, you need to set the device in 3-phase mode, configure the PWM frequency and dead-time, and set the motor parameters such as pole pairs and maximum speed.
  • The maximum current rating of the STSPIN32F0ATR is 1.5 A per phase, but it can be increased up to 3 A per phase with proper heat sinking and thermal management.
  • To implement overcurrent protection with the STSPIN32F0ATR, you can use the built-in overcurrent detection feature, which can be configured to trigger an interrupt or reset the device when an overcurrent condition is detected.
  • Yes, the STSPIN32F0ATR can be used for stepper motor control, but it requires additional external circuitry and software development to implement the stepper motor control algorithm.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN32F0ATR Overview

Use the download button to access the STSPIN32F0ATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
