STSPIN32F0B - STMicroelectronics

Description: STMICROELECTRONICS - STSPIN32F0B - MOTOR DRIVER, -40 TO 125DEG C

Download STSPIN32F0B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

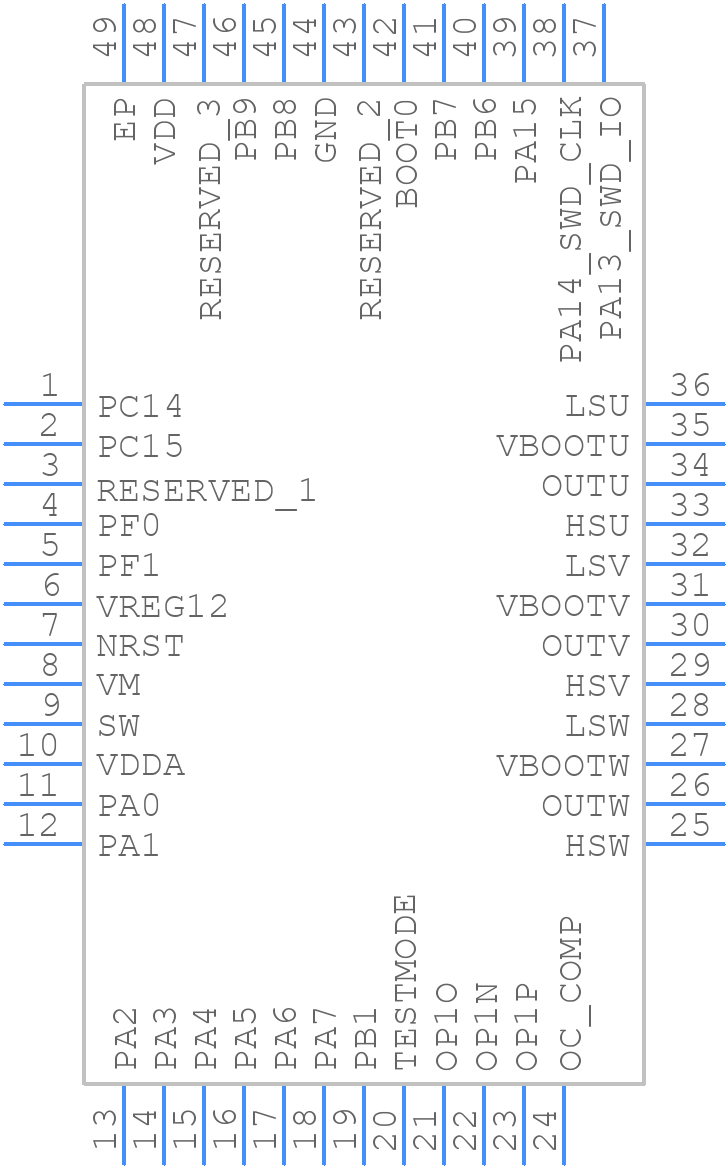

STSPIN32F0B - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN32F0B - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - STSPIN32F0B
click to zoom
3D Models
STSPIN32F0B - STMicroelectronics - 3D model - Quad Flat No-Lead - STSPIN32F0B
click to zoom

STSPIN32F0B Details

  • Manufacturer Part Number:

    STSPIN32F0B

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STSPIN32F0B Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STSPIN32F0B is 32 MHz.
  • To configure the STSPIN32F0B for 3-phase motor control, you need to set the device in 3-phase mode by writing to the MODE register. You also need to configure the PWM frequency, dead-time, and other parameters according to your motor requirements.
  • The maximum current rating of the STSPIN32F0B is 1.5 A per phase, with a total current rating of 4.5 A.
  • The STSPIN32F0B has a built-in overcurrent protection feature. You can set the overcurrent threshold by writing to the OCP register. When an overcurrent condition is detected, the device will automatically shut down the outputs to prevent damage.
  • Yes, the STSPIN32F0B can be used for brushless DC motor control. You can configure the device in 3-phase mode and use the built-in PWM generators to control the motor speed and direction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN32F0B Overview

Use the download button to access the STSPIN32F0B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics
