STSPIN32F0BTR - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers INDUSTRIAL & POWER CONVERSION

Download STSPIN32F0BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

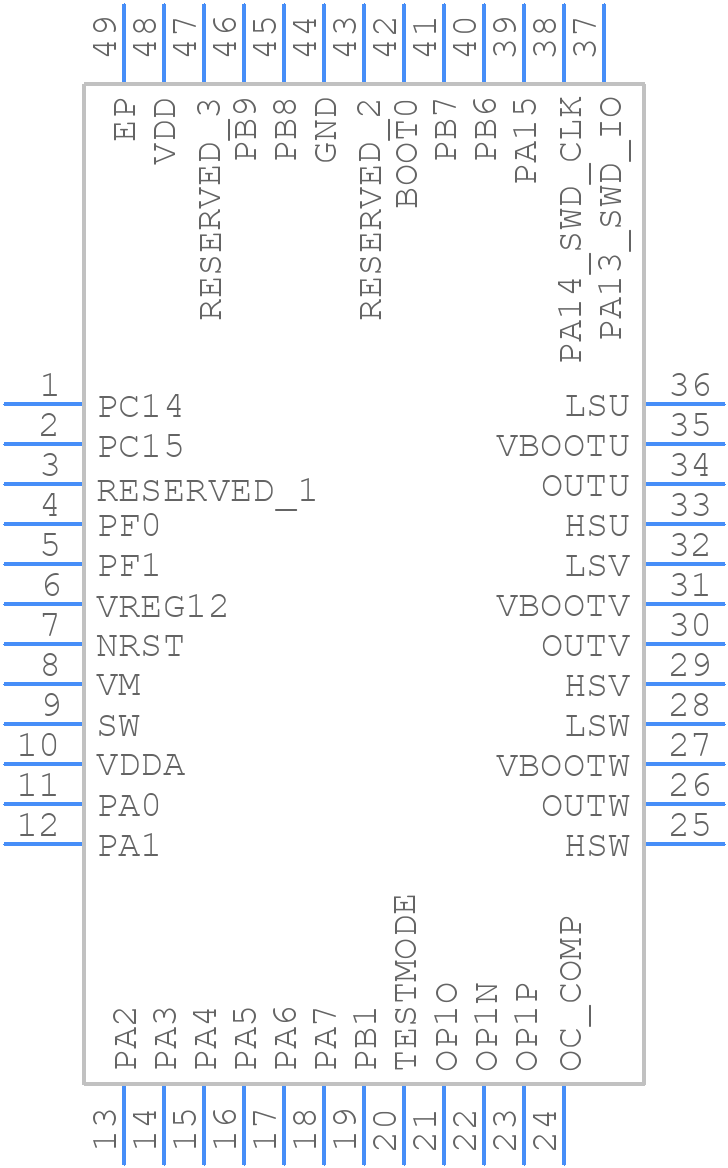

Symbol
STSPIN32F0BTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN32F0BTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . UFQFPN48 - 48-lead+
click to zoom
3D Models
STSPIN32F0BTR - STMicroelectronics - 3D model - Quad Flat No-Lead - . UFQFPN48 - 48-lead+
click to zoom

STSPIN32F0BTR Details

  • Manufacturer Part Number:

    STSPIN32F0BTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STSPIN32F0BTR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STSPIN32F0BTR is 32 kHz, but it can be overclocked up to 64 kHz with reduced performance.
  • To configure the STSPIN32F0BTR for 3-phase brushless motor control, you need to set the device in 3-phase mode, configure the PWM frequency and dead-time, and set the correct commutation sequence using the SPI interface.
  • The maximum current rating of the STSPIN32F0BTR is 1.5 A per phase, but it can be increased up to 3 A per phase with proper heat sinking and thermal management.
  • To implement overcurrent protection using the STSPIN32F0BTR, you need to use the built-in current sense amplifiers and comparators to monitor the phase currents and detect overcurrent conditions. You can then use the SPI interface to set the overcurrent threshold and response.
  • Yes, the STSPIN32F0BTR can be used for stepper motor control, but it requires additional external circuitry to generate the stepper motor control signals. The device can provide the necessary PWM signals, but you need to add external logic to generate the stepper motor control sequences.
