STSPIN32G0A1TR - STMicroelectronics

Description: Advanced brushless motor controller with embedded STM32G0 MCU Operating voltage from 6.7 to 45 V temperature range: -40 to +125 °C

Download STSPIN32G0A1TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

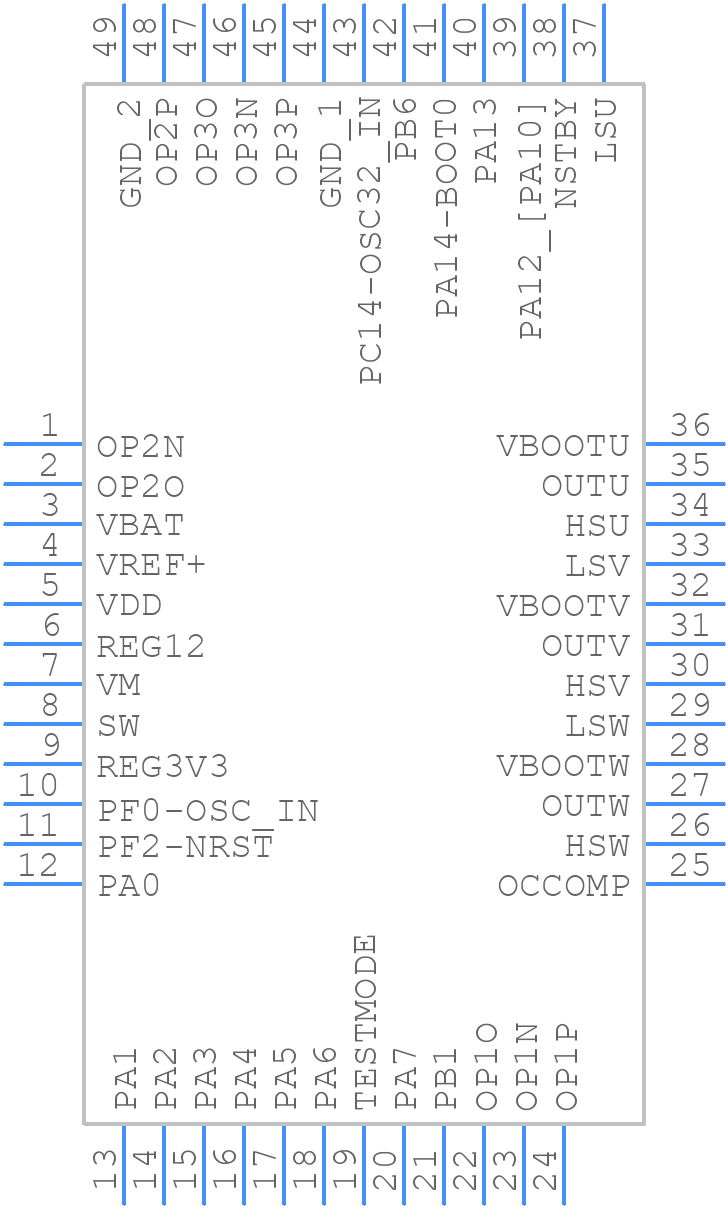

STSPIN32G0A1TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN32G0A1TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm-1
click to zoom
3D Models
STSPIN32G0A1TR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm-1
click to zoom

STSPIN32G0A1TR Details

  • Manufacturer Part Number:

    STSPIN32G0A1TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • uPs/uCs/Peripheral ICs Type:

    Motion Control SoC

STSPIN32G0A1TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STSPIN32G0A1TR is -40°C to 150°C.
  • The STSPIN32G0A1TR can be configured for 3-phase motor control by setting the correct registers for the motor type, pole pairs, and commutation mode. Refer to the application note AN5443 for detailed configuration and programming guidelines.
  • The maximum current rating for the STSPIN32G0A1TR is 2A per phase, with a maximum total current of 4A.
  • Yes, the STSPIN32G0A1TR is suitable for BLDC motor control. It has a built-in 3-phase bridge driver and can operate in sensorless or sensored mode.
  • The STSPIN32G0A1TR has a built-in overcurrent protection feature that can be enabled by setting the OCP threshold register. The device will automatically shut down if the current exceeds the set threshold.
