STSPIN32G0B2 - STMicroelectronics

Description: Advanced brushless motor controller with embedded STM32G0 MCU

Download STSPIN32G0B2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

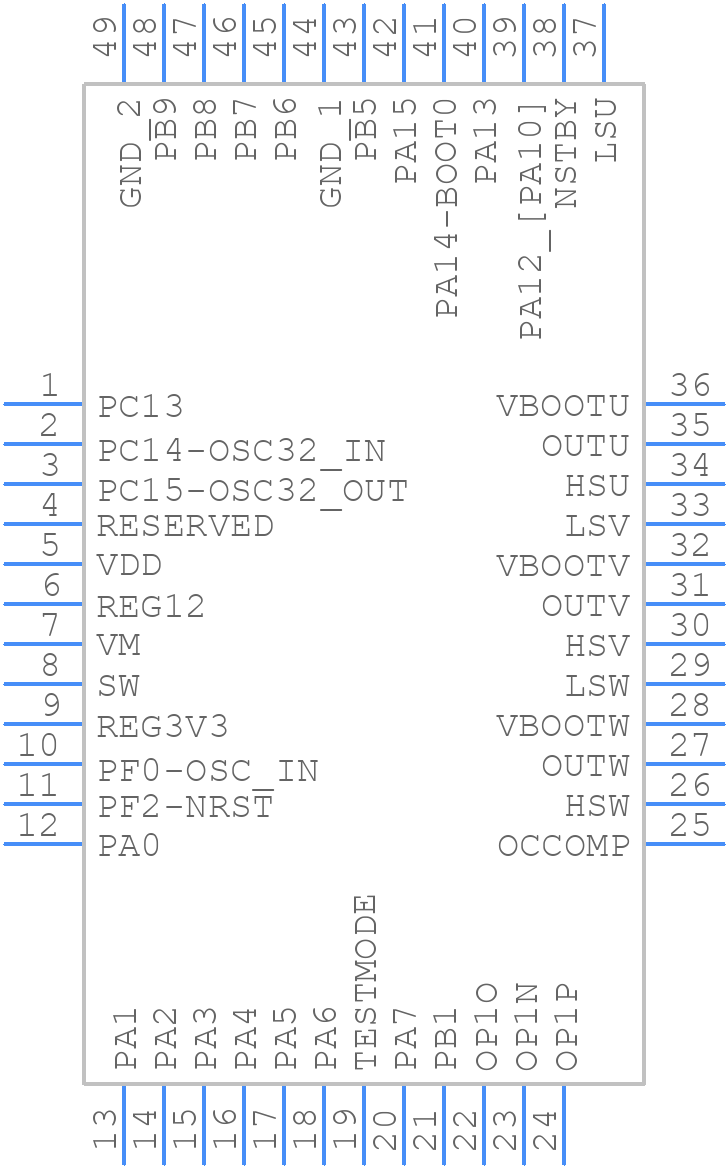

STSPIN32G0B2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN32G0B2 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN48 7 x 7 x 1.0 - 48L, pitch 0.5
click to zoom
3D Models
STSPIN32G0B2 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN48 7 x 7 x 1.0 - 48L, pitch 0.5
click to zoom

STSPIN32G0B2 Details

  • Manufacturer Part Number:

    STSPIN32G0B2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • uPs/uCs/Peripheral ICs Type:

    Motion Control SoC

STSPIN32G0B2 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STSPIN32G0B2 is 100 kHz, but it can be adjusted through the SPI interface.
  • The current sense resistors (R Sense) should be connected between the sense pins (SENSE_A and SENSE_B) and ground. The recommended value is 0.1 ohm, but it can be adjusted based on the specific application requirements.
  • The bootstrap capacitor (C BOOT) is used to generate the high-side gate drive voltage for the power MOSFETs. It should be connected between the BOOT pin and the power supply voltage (VCC).
  • The STSPIN32G0B2 has a built-in overcurrent protection (OCP) feature that can be enabled through the SPI interface. The OCP threshold can be set through the OCP register, and the device will automatically shut down if the current exceeds the set threshold.
  • The recommended layout and PCB design considerations for the STSPIN32G0B2 include keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. It is also recommended to follow the layout guidelines provided in the datasheet and application notes.
