STTH1008DTI - STMicroelectronics

Description: STMICROELECTRONICS - STTH1008DTI - RECTIFIER, DUAL, 10A, 800V, TO-220AC

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

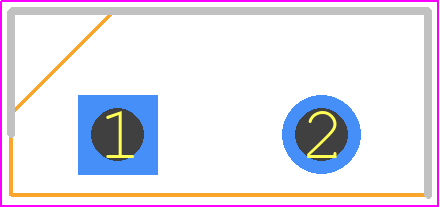

STTH1008DTI - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220AC-1-
click to zoom

3D Models

STTH1008DTI - STMicroelectronics  - 3D model - Transistor Outline, Vertical - TO-220AC-1-
click to zoom

STTH1008DTI Details

  • Manufacturer Part Number:

    STTH1008DTI

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    R-PSFM-T2

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    7.24

  • Samacsys Modified On:

    2021-01-01 06:25:49

  • Additional Feature:

    SOFT FACTOR IS 0.8

  • Application:

    HIGH VOLTAGE HYPER FAST RECOVERY

  • Case Connection:

    ISOLATED

  • Configuration:

    SERIES CONNECTED, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    2.85 V

  • JEDEC-95 Code:

    TO-220AC

  • JESD-30 Code:

    R-PSFM-T2

  • Non-rep Pk Forward Current-Max:

    120 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Rep Pk Reverse Voltage-Max:

    800 V

  • Reverse Current-Max:

    20 µA

  • Reverse Recovery Time-Max:

    0.055 µs

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Risk Rank: Design Risk

STTH1008DTI — STMicroelectronics
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

STTH1008DTI Overview

Use the download button to access the STTH1008DTI schematic symbol, PCB footprint, and 3D model.
STTH1008DTI by STMicroelectronics has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like STTH1, or try a keyword search, such as Rectifier Diodes
