STTH30RQ06L2Y-TR - STMicroelectronics

Description: Automotive 600 V, 30 A ultrafast high voltage rectifier

Download STTH30RQ06L2Y-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

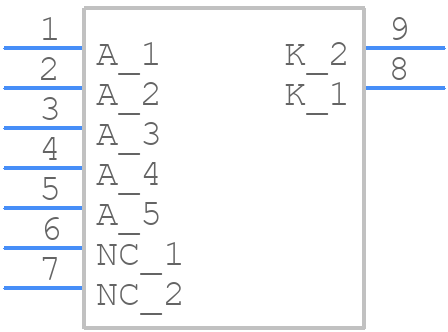

STTH30RQ06L2Y-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STTH30RQ06L2Y-TR - STMicroelectronics PCB footprint - Other - Other - STTH30RQ06L2Y-TR-1
click to zoom
3D Models
STTH30RQ06L2Y-TR - STMicroelectronics - 3D model - Other - STTH30RQ06L2Y-TR-1
click to zoom

STTH30RQ06L2Y-TR Details

  • Manufacturer Part Number:

    STTH30RQ06L2Y-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Application:

    HIGH VOLTAGE ULTRA FAST RECOVERY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    2.95 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    215 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    600 V

  • Reverse Current-Max:

    40 µA

  • Reverse Recovery Time-Max:

    0.055 µs

  • Reverse Test Voltage:

    600 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

STTH30RQ06L2Y-TR Frequently Asked Questions (FAQs)

  • The thermal resistance (Rth) of the STTH30RQ06L2Y-TR is typically around 2.5°C/W (junction-to-ambient) and 1.5°C/W (junction-to-case). However, this value can vary depending on the specific application, PCB design, and cooling conditions.
  • Yes, the STTH30RQ06L2Y-TR is a high-reliability device that meets the requirements of AEC-Q101, which is a standard for automotive-grade components. It is suitable for use in high-reliability applications such as automotive, industrial, and medical devices.
  • To ensure proper soldering of the STTH30RQ06L2Y-TR, follow the recommended soldering profile and guidelines provided in the STMicroelectronics application note AN5163. Additionally, use a soldering iron with a temperature range of 250°C to 260°C and a solder with a melting point of 217°C to 220°C.
  • The recommended PCB layout for the STTH30RQ06L2Y-TR involves using a thermal pad to connect the device to a heat sink or a copper plane on the PCB. The thermal pad should be at least 2 mm x 2 mm in size and have a thermal conductivity of at least 1 W/mK. Additionally, ensure that the PCB layout provides adequate clearance and creepage distances to meet safety and regulatory requirements.
  • The STTH30RQ06L2Y-TR is rated for a maximum voltage of 600 V. While it can be used in high-voltage applications, it is essential to ensure that the device is properly protected against overvoltage and surge conditions using suitable protection circuits and components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STTH30RQ06L2Y-TR Overview

Use the download button to access the STTH30RQ06L2Y-TR schematic symbol, PCB footprint, and 3D model.
