STTS22HTR - STMicroelectronics

Description: Board Mount Temperature Sensors Low-voltage, ultra-low-power, 0.5 degree C accuracy I2C/SMBus 3.0 temperature sensor

Download STTS22HTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

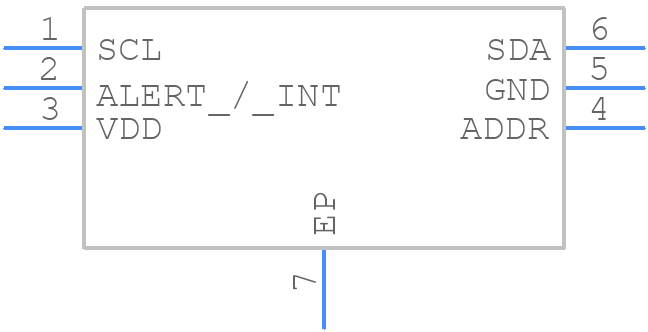

STTS22HTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STTS22HTR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN-6L
click to zoom
3D Models
STTS22HTR - STMicroelectronics - 3D model - Small Outline No-lead - UDFN-6L
click to zoom

STTS22HTR Details

  • Manufacturer Part Number:

    STTS22HTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-6

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-10-15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.55 mm

  • Body Length or Diameter:

    2 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.18 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

STTS22HTR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Calibrate the device using the built-in calibration mechanism. Ensure the device is in thermal equilibrium with the environment, and avoid self-heating effects by minimizing current consumption.
  • The maximum allowed voltage on the VDD pin is 3.6V. Exceeding this voltage may damage the device.
  • Yes, but ensure the device is properly sealed or coated to prevent moisture ingress. The device is not designed for use in condensing humidity environments.
  • Use a 3-wire SPI interface (SCK, MOSI, MISO) to communicate with the device. Ensure proper signal termination and noise reduction techniques are employed.
