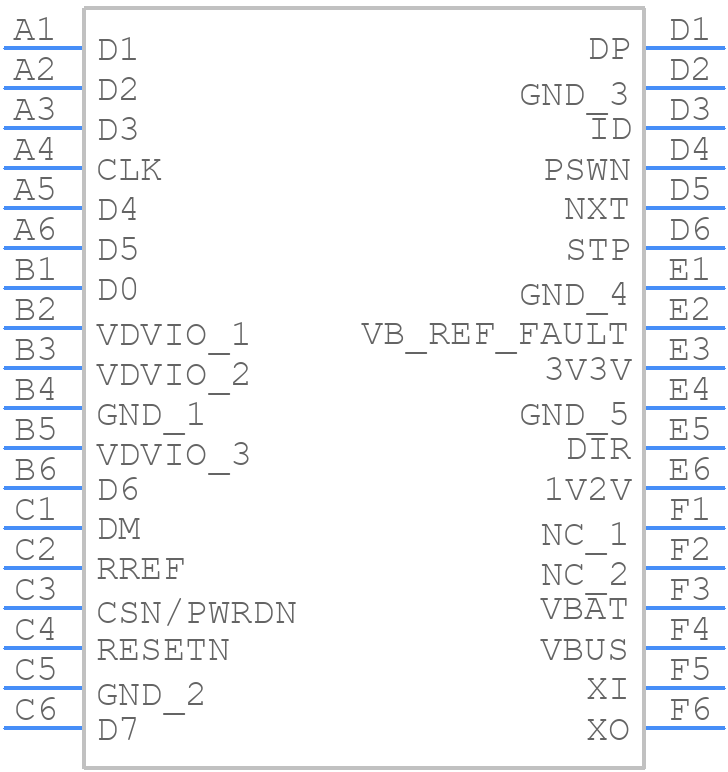

STULPI01BTBR - STMicroelectronics

STULPI01BTBR Details

• Manufacturer Part Number:

  STULPI01BTBR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

• Package Description:

  UTFBGA-36

• Pin Count:

  36

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6

• Data Rate:

  480000 Mbps

• JESD-30 Code:

  S-PBGA-B36

• JESD-609 Code:

  e3

• Length:

  3.6 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  36

• Number of Transceivers:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA36,6X6,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.11 mm

• Supply Current-Max:

  50 mA

• Supply Voltage-Nom:

  3.6 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Telecom IC Type:

  SUPPORT CIRCUIT

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn) - immersion

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  3.6 mm
