STUSB1600AQTR - STMicroelectronics

Description: Standalone USB Type-C™ controller with high voltage protections

Download STUSB1600AQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

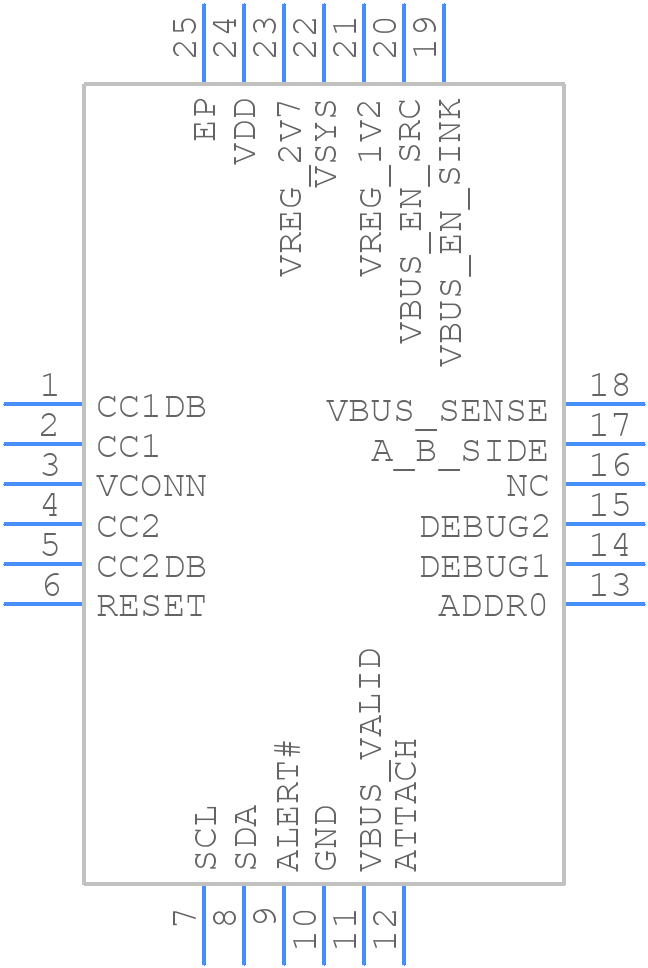

STUSB1600AQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB1600AQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-24 EP (4x4)
click to zoom
3D Models
STUSB1600AQTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-24 EP (4x4)
click to zoom

STUSB1600AQTR Details

  • Manufacturer Part Number:

    STUSB1600AQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-03

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bus Compatibility:

    I2C

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    22 V

  • Supply Voltage-Min:

    4.1 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

STUSB1600AQTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB1600AQTR involves placing the device near the USB connector, using a solid ground plane, and minimizing the length of the USB traces to reduce electromagnetic interference (EMI).
  • The STUSB1600AQTR requires a 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a stable voltage supply. Additionally, decoupling capacitors should be placed close to the device to filter out noise.
  • The STUSB1600AQTR supports cable lengths up to 3 meters, but the actual length may vary depending on the cable quality, signal frequency, and system noise.
  • To configure the STUSB1600AQTR for high-speed data transfer, set the HS_EN pin high, and ensure that the device is properly powered and connected to a high-speed USB host controller.
  • The VBUS pin on the STUSB1600AQTR is used to detect the presence of a USB bus voltage, which is required for the device to operate properly. It's recommended to connect VBUS to the USB bus voltage through a 1kΩ resistor.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STUSB1600AQTR Overview

Use the download button to access the STUSB1600AQTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STUSB, or try a keyword search, such as Bus Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
