STV7697A - STMicroelectronics

STV7697A Details

• Manufacturer Part Number:

  STV7697A

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

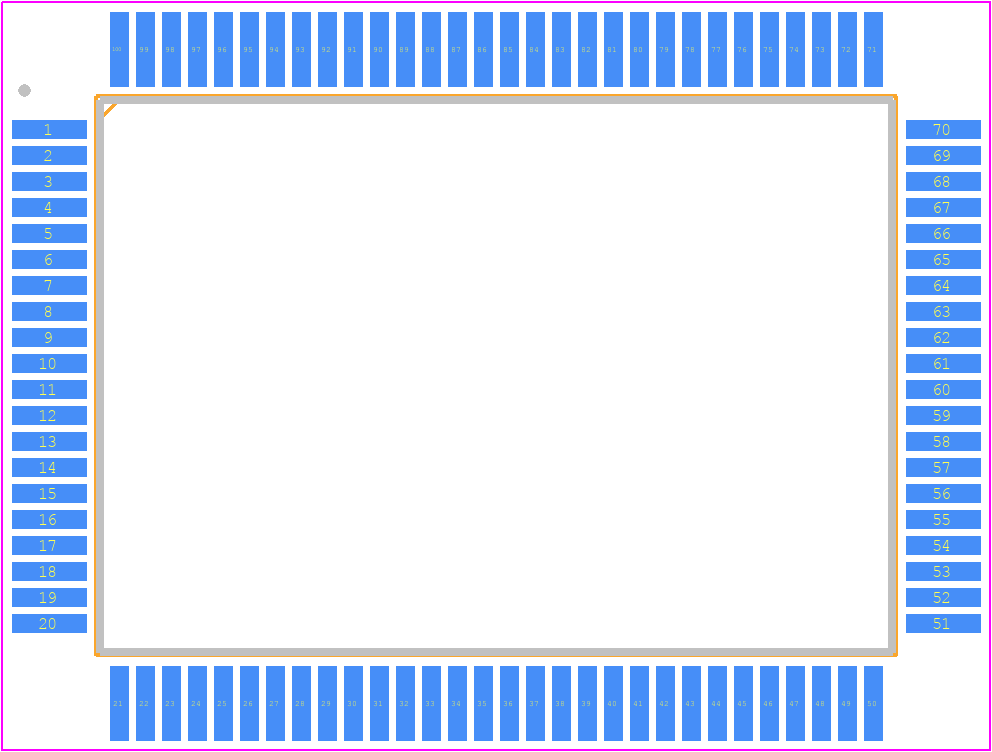

• Part Package Code:

  QFP

• Package Description:

  14 X 20 MM, 2.80 MM HEIGHT, PLASTIC, QFP-100

• Pin Count:

  100

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Data Input Mode:

  SERIAL

• Input Characteristics:

  STANDARD

• Interface IC Type:

  DC PLASMA DISPLAY DRIVER

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e4

• Length:

  20 mm

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  64

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP100,.7X.9

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Current-Max:

  5.3 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  160 V

• Supply Voltage1-Min:

  15 V

• Surface Mount:

  YES

• Technology:

  BCD

• Temperature Grade:

  OTHER

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• fmax-Min:

  20 MHz
