STW13N95K3 - STMicroelectronics

Description: STW13N95K3 N-Channel MOSFET Transistor, 10 A, 950 V MDmesh K3, SuperMESH3, 3-Pin TO-247 STMicroelectronics

Download STW13N95K3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STW13N95K3 - STMicroelectronics - PCB symbol
click to zoom

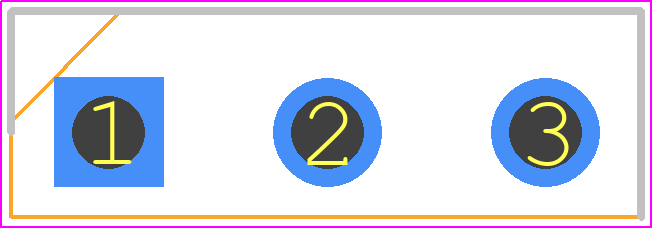

PCB Footprints
STW13N95K3 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247_2020
click to zoom
3D Models
STW13N95K3 - STMicroelectronics - 3D model - Transistor Outline, Vertical - TO-247_2020
click to zoom

STW13N95K3 Details

  • Manufacturer Part Number:

    STW13N95K3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-247

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    ULTRA-LOW RESISTANCE

  • Avalanche Energy Rating (Eas):

    400 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    950 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.85 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    190 W

  • Pulsed Drain Current-Max (IDM):

    40 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STW13N95K3 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the STW13N95K3 is 175°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 150°C for reliable operation and to prevent thermal runaway.
  • To calculate the power dissipation of the STW13N95K3, you need to consider the voltage drop across the device, the current flowing through it, and the thermal resistance (RthJA). The formula is: Pd = (Vds * Ids) + (RthJA * Tj). You can find the values for Vds, Ids, and RthJA in the datasheet.
  • The recommended gate resistor value for the STW13N95K3 depends on the specific application and the gate driver used. A typical value is between 10 ohms and 100 ohms. However, it's essential to consult the datasheet and the gate driver's documentation for specific recommendations.
  • Yes, the STW13N95K3 is suitable for high-frequency switching applications up to 100 kHz. However, you need to ensure that the device is properly cooled, and the layout is optimized to minimize parasitic inductances and capacitances. Additionally, you should consider the device's switching losses and ensure that they are within the recommended limits.
  • To protect the STW13N95K3 from overvoltage and overcurrent, you can use a combination of voltage regulators, overvoltage protection (OVP) circuits, and current sensing resistors. Additionally, you should ensure that the device is operated within its recommended safe operating area (SOA) and that the thermal protection is enabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STW13N95K3 Overview

Use the download button to access the STW13N95K3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STW13, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
