Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for STX-3100-11N
- Part Number STX-3100-11N
- Manufacturer Kycon
- Pin Count 16
- Part Category Connector
- Package Category Other

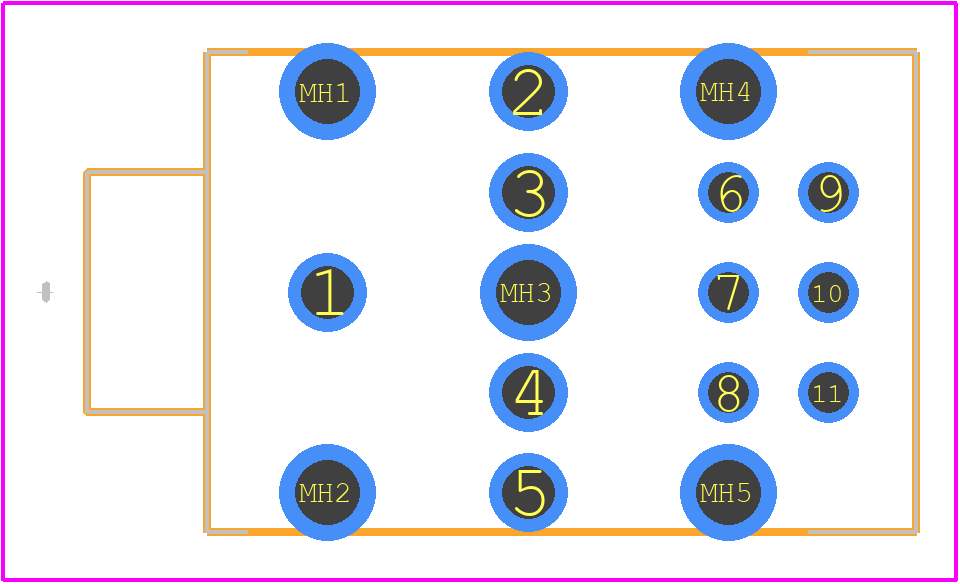

- Footprint Name Other - STX-3100-11N-1
- Released Date Jul 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
STX-3100-11N Details
-
Manufacturer Part Number:
STX-3100-11N
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Kycon Inc
-
YTEOL:
7
-
Connector Type:
3.5 MM AUDIO
Trust Checks
Expert Contribution
System Verified
Community Approved
STX-3100-11N Overview
Use the download button to access the STX-3100-11N schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like STX-3,
or try a keyword search, such as Audio/RCA Connectors
