STX-3100-5C footprint, schematic symbol and 3D model by Kycon

Symbol

click to zoom

PCB Footprints

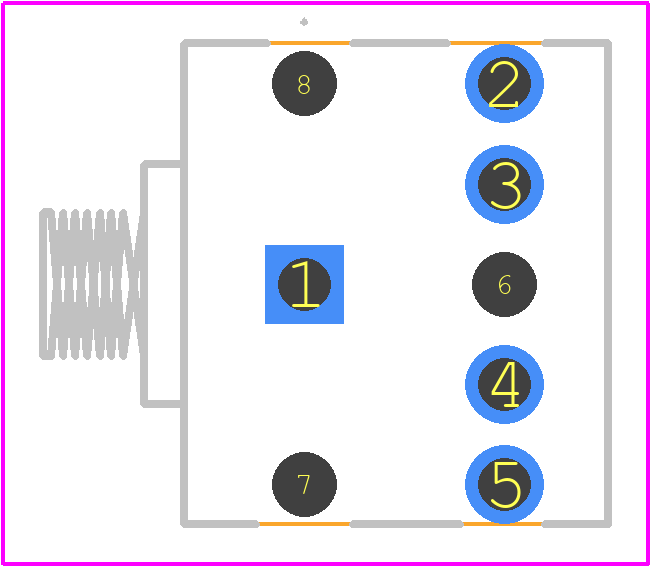

STX-3100-5C - Kycon PCB footprint - Other - Other - STX-3100-5C-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STX-3100-5C
Part Number STX-3100-5C
Manufacturer Kycon
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - STX-3100-5C-3
Released Date Oct 19, 2024
Last Modified Date Oct 19, 2024 1:24 PM UTC
Pinout / Pin List Click Here (Member Only)

STX-3100-5C Details

Manufacturer Part Number:
STX-3100-5C
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Kycon Inc
YTEOL:
7
Connector Type:
3.5 MM AUDIO

STX-3100-5C Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs).
Yes, the STX-3100-5C is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for use in high-vibration applications.
The operating temperature range for the STX-3100-5C is -40°C to 105°C (-40°F to 221°F).
Yes, the STX-3100-5C is compatible with lead-free soldering processes and meets the requirements of RoHS and REACH directives.
The mating cycle life of the STX-3100-5C is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

STX-3100-5C Overview

Use the download button to access the STX-3100-5C schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STX-3, or try a keyword search, such as Audio/RCA Connectors
