The recommended torque for the screw threads is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the STX-3120-5B-284C is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
Yes, the connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and handling procedures to ensure optimal performance.
The STX-3120-5B-284C has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
Yes, the connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STX-3120-5B-284C Overview

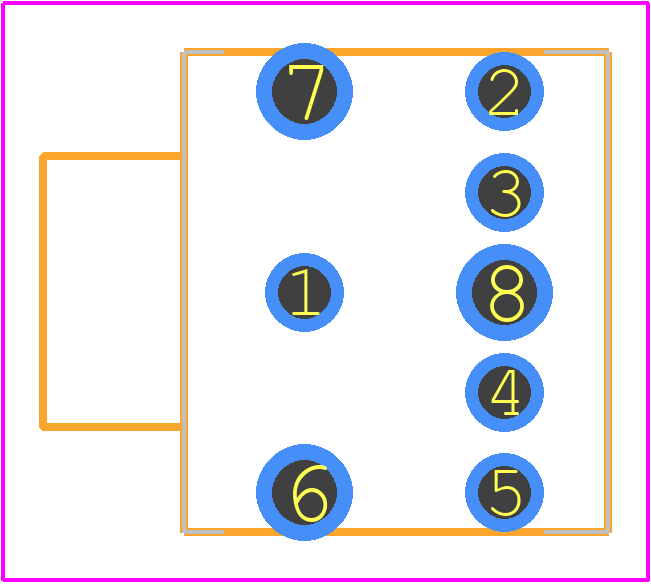

Use the download button to access the STX-3120-5B-284C schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like STX-3,
or try a keyword search, such as Audio/RCA Connectors
