STX-4235-3/3-N - Kycon

Description: Phone Connectors 3.5mm STACKED STEREO 3P OVER 3P NONTHREAD,0.3 A,16 Volts DC,500V AC RMS for 1 minute, -25°C to +85°C.

Download STX-4235-3/3-N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STX-4235-3/3-N - Kycon - PCB symbol
click to zoom
PCB Footprints

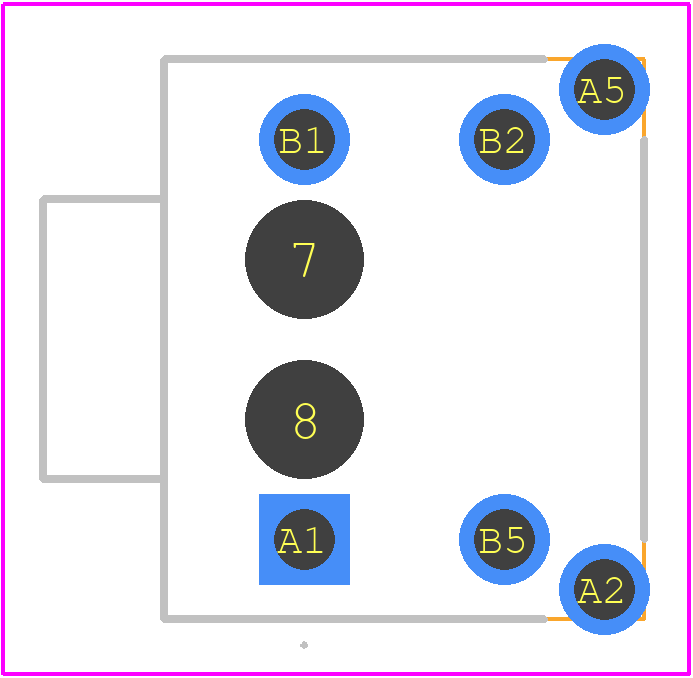

STX-4235-3/3-N - Kycon PCB footprint - Other - Other - STX-4235-3/3-N-3
click to zoom
3D Models
STX-4235-3/3-N - Kycon - 3D model - Other - STX-4235-3/3-N-3
click to zoom

STX-4235-3/3-N Details

  • Manufacturer Part Number:

    STX-4235-3/3-N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    7

  • Connector Type:

    3.5MM AUDIO

STX-4235-3/3-N Frequently Asked Questions (FAQs)

  • The recommended torque for the STX-4235-3/3-N connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the STX-4235-3/3-N connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the STX-4235-3/3-N connector is designed to operate in harsh environments, including extreme temperatures (-40°C to 125°C), humidity, and exposure to chemicals.
  • The STX-4235-3/3-N connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the STX-4235-3/3-N connector is designed for automated assembly processes, including pick-and-place machines and robotic assembly lines.
