SU10H-05050 - Yageo Group

Description: SU Coils Rated current 0.5(A) Inductance 5(mH) min. DC resistance 1.5(Ω/line) max. Temperature rise 40(K) max.

Download SU10H-05050 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SU10H-05050 model

Email notifications will be applied after download.

Send part feedback

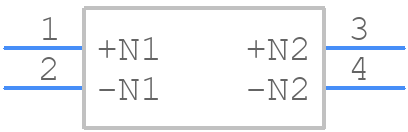

Symbol

SU10H-05050 - Yageo Group - PCB symbol

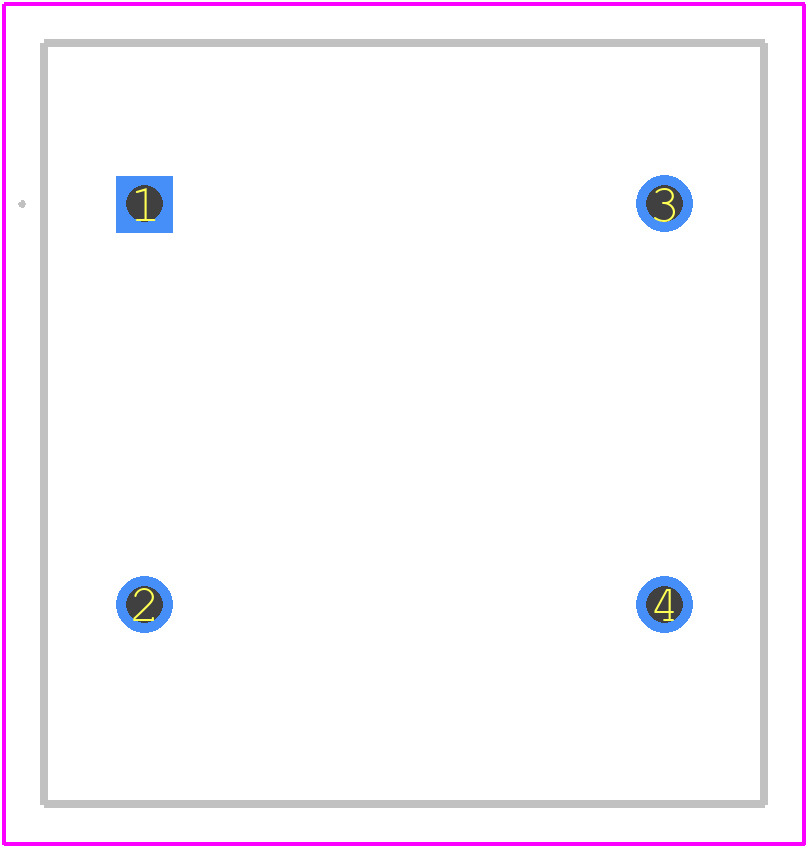

PCB Footprints

SU10H-05050 - Yageo Group PCB footprint - Other - Other - SU10H-05050-4

3D Models

SU10H-05050 - Yageo Group - 3D model - Other - SU10H-05050-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for SU10H-05050
Part Number SU10H-05050
Manufacturer Yageo Group
Pin Count 4
Part Category Filter
Package Category Other
Footprint Name Other - SU10H-05050-4
Released Date Aug 18, 2025
Last Modified Date Feb 4, 2026 2:20 PM UTC
Pinout / Pin List Click Here (Member Only)

SU10H-05050 Details

Manufacturer Part Number:
SU10H-05050
Manufacturer:
YAGEO Corporation

Trust Checks

Community Provided

System Verified

Community Approved

SU10H-05050 Overview

Use the download button to access the SU10H-05050 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SU10H, or try a keyword search, such as Fixed Inductors
