SUCS102415C - Cosel

Description: Isolated DC/DC Converters 10W 15V 0.8A Through Hole

Download SUCS102415C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SUCS102415C - Cosel - PCB symbol
click to zoom
PCB Footprints

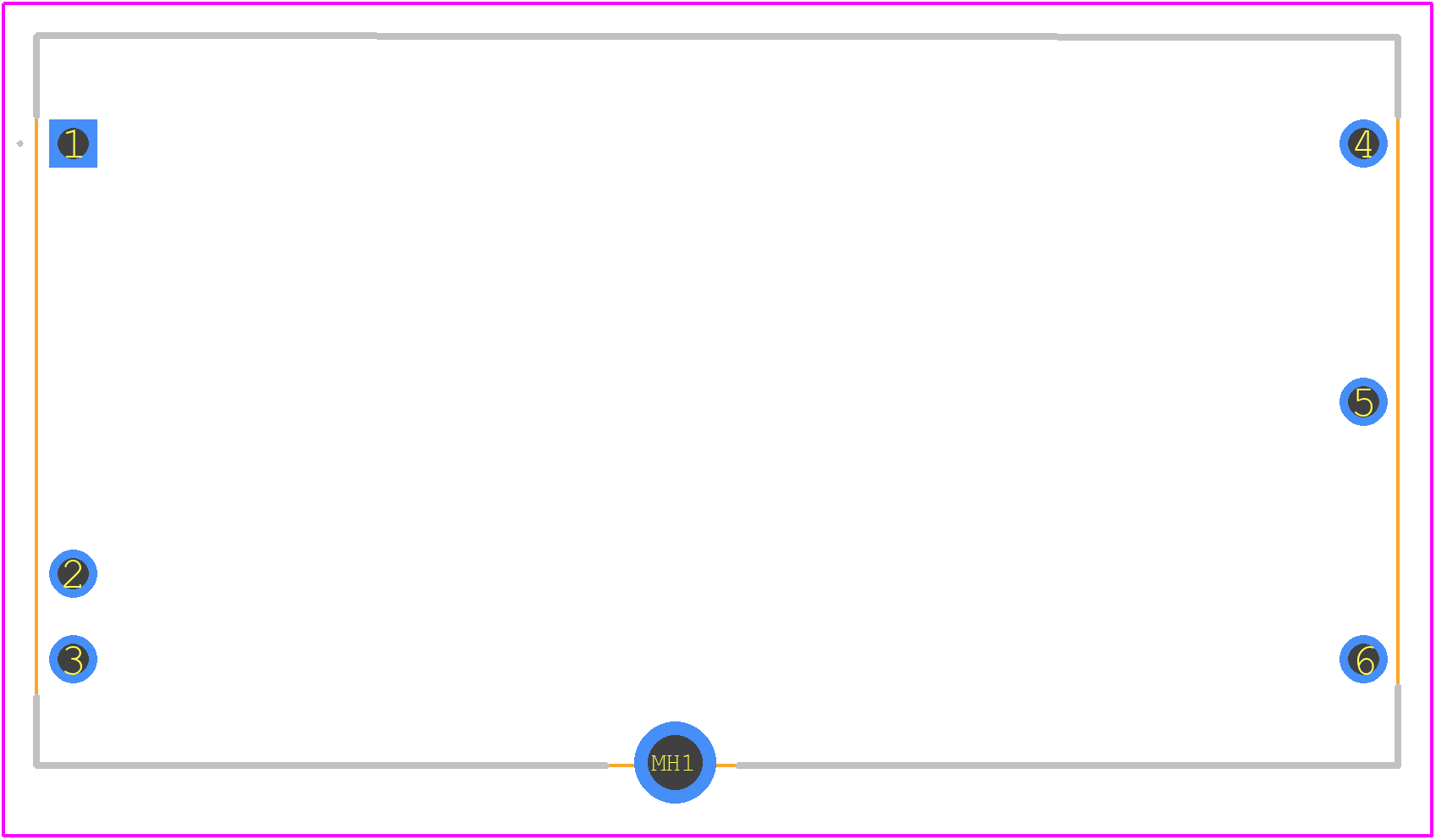

SUCS102415C - Cosel PCB footprint - Other - Other - SUCS102415C-2
click to zoom
3D Models
SUCS102415C - Cosel - 3D model - Other - SUCS102415C-2
click to zoom

SUCS102415C Details

  • Manufacturer Part Number:

    SUCS102415C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-T6

  • Length:

    40.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    14.25 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22 mm

SUCS102415C Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the tab of the SUCS102415C, and multiple vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • Yes, the SUCS102415C is designed to withstand high vibrations. However, it's recommended to follow the mounting instructions and ensure the device is securely fastened to the PCB to prevent damage or malfunction.
  • Cosel recommends a maximum capacitance mismatch of 10% between the input and output capacitors to ensure stable operation and minimize oscillations.
  • Yes, the SUCS102415C can be used in a redundant or parallel configuration, but it's essential to ensure proper synchronization and control of the devices to prevent instability or damage.
  • Cosel recommends a fuse rating of 5A to 10A, depending on the specific application and input voltage, to protect the device from overcurrent conditions.
