SUCS30505BP - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 4.5 → 9 V dc, Vout 5V dc, I/O isolation 500V ac

Download SUCS30505BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

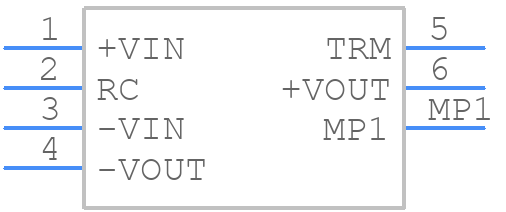

SUCS30505BP - Cosel - PCB symbol
click to zoom
PCB Footprints
SUCS30505BP - Cosel PCB footprint - Other - Other - SUCS30505BP-1
click to zoom
3D Models
SUCS30505BP - Cosel - 3D model - Other - SUCS30505BP-1
click to zoom

SUCS30505BP Details

  • Manufacturer Part Number:

    SUCS30505BP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-G6

  • Length:

    25 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    YES

  • Width:

    16.1 mm

SUCS30505BP Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • Cosel recommends consulting with their application engineers to ensure the SUCS30505BP meets the specific safety and regulatory requirements of your application, such as UL, EN, or IEC standards.
  • The maximum allowable capacitance for the output filter capacitors is 1000uF, as specified in the datasheet. Exceeding this value may affect the stability of the converter.
  • Yes, the SUCS30505BP is designed to withstand high-vibration and high-shock environments, but it's recommended to consult with Cosel's application engineers to ensure the converter is properly secured and mounted to meet the specific environmental requirements.
  • Cosel recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and current requirements of the application. A slow-blow fuse type is recommended to ensure the converter's inrush current is handled properly.
