Part Image

SUCS61215C - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 9 → 18 V dc, Vout 15V dc, I/O isolation 500V ac

Download SUCS61215C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SUCS61215C - Cosel - PCB symbol
click to zoom
PCB Footprints

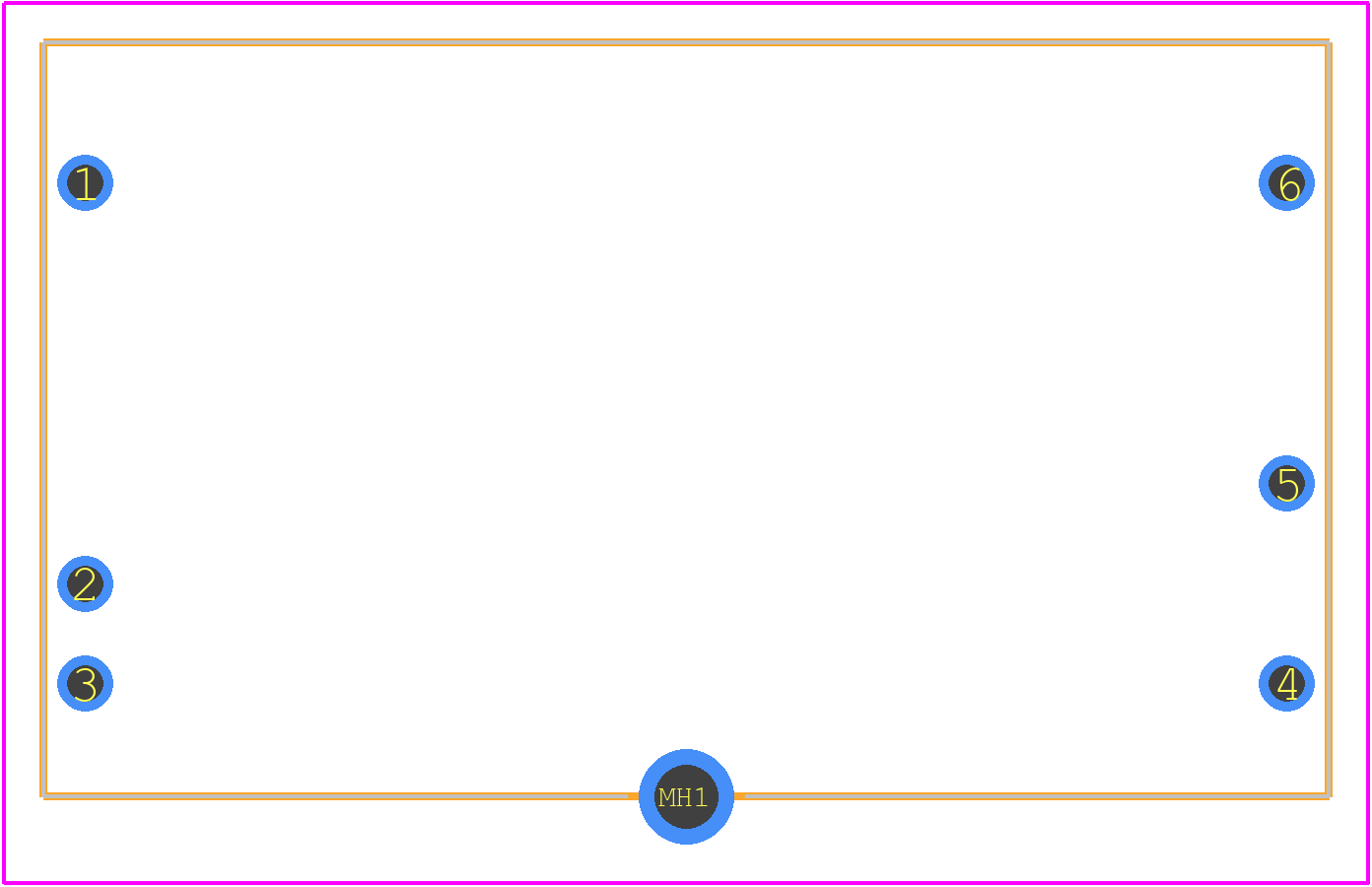

SUCS61215C - Cosel PCB footprint - Other - Other - SUCS61215C-1
click to zoom
3D Models
SUCS61215C - Cosel - 3D model - Other - SUCS61215C-1
click to zoom

SUCS61215C Details

  • Manufacturer Part Number:

    SUCS61215C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-T6

  • Length:

    32.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    14.25 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    YES

  • Width:

    19.1 mm

SUCS61215C Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad, and multiple vias to dissipate heat effectively. A minimum of 2oz copper thickness is recommended.
  • Yes, the SUCS61215C is designed to withstand vibrations up to 10G peak acceleration, but it's recommended to follow the mounting instructions and ensure the module is securely fastened to the PCB to prevent damage.
  • Cosel recommends adding external EMI filters or components to meet specific system requirements. The module's input filter is designed to meet general EMI standards, but additional filtering may be necessary for specific applications.
  • The maximum output capacitance is not specified in the datasheet, but as a general rule, Cosel recommends limiting the output capacitance to 10uF or less to prevent oscillation and ensure stable operation.
  • The SUCS61215C is designed to operate up to 5,000 meters (16,400 ft) above sea level, but derating may be necessary for higher altitudes. Consult with Cosel's application engineers for specific guidance.
