Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and consider adding a heat sink if operating in high ambient temperatures.
Follow proper PCB layout and grounding techniques, use a metal enclosure, and ensure proper shielding and filtering of input/output cables. Additionally, consider adding EMI filters or common-mode chokes to reduce emissions.
The maximum output capacitance is 220uF. Exceeding this value may cause instability or oscillations. Ensure the output capacitor is rated for the maximum output voltage and has a low ESR to minimize voltage ripple.
Yes, but it's essential to ensure proper synchronization and current sharing between units. Consult Cosel's application notes and consider using a dedicated redundancy module for a reliable and efficient parallel operation.
Consult Cosel's troubleshooting guide and application notes. Check for proper input voltage, output loading, and thermal conditions. Use an oscilloscope to monitor the output voltage and current. If issues persist, contact Cosel's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SUCS62405C Overview

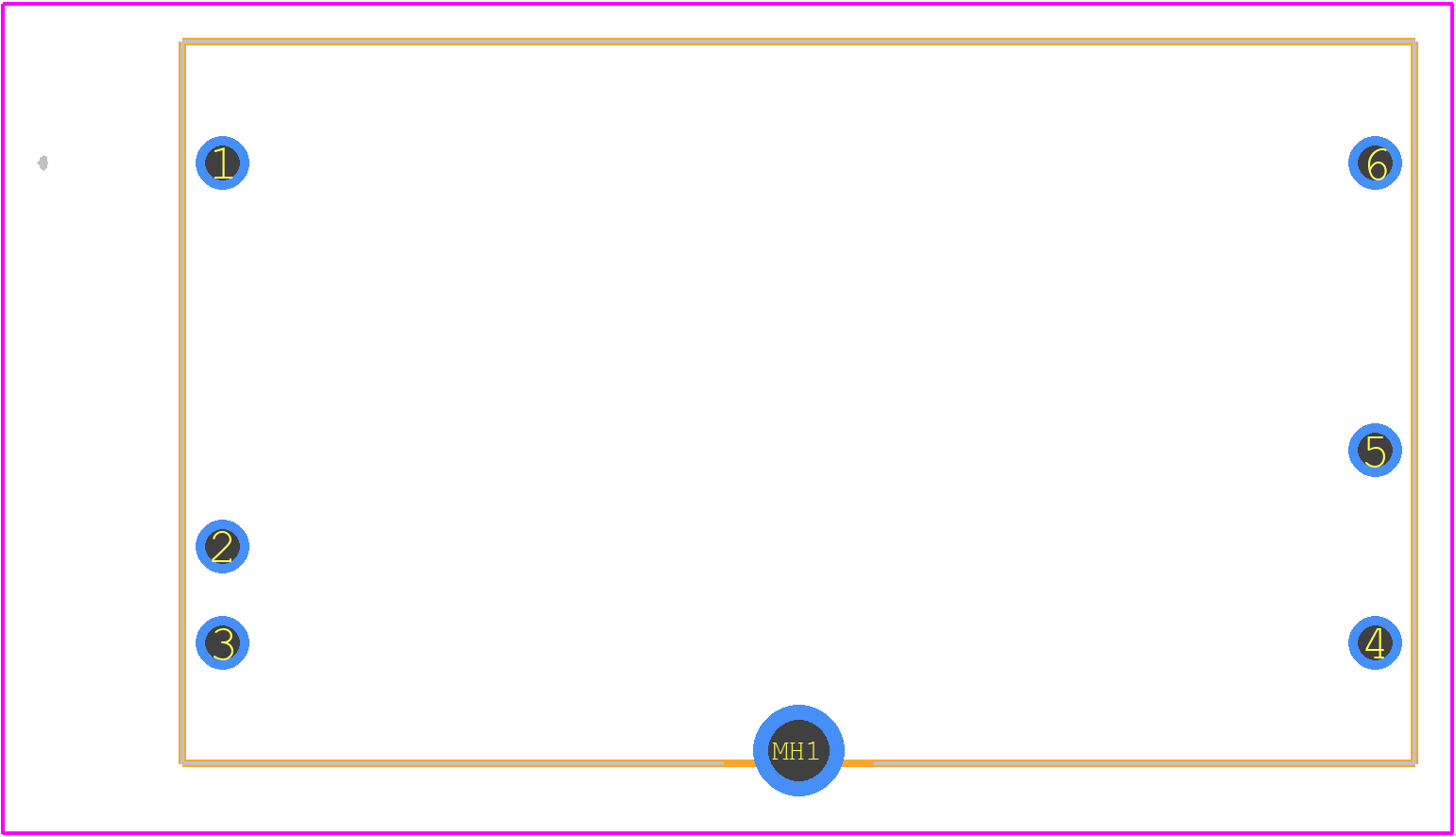

Use the download button to access the SUCS62405C schematic symbol, PCB footprint, and 3D model.
