Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the SUCS62412C is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage or dislodging of the module.
To ensure EMC, Cosel recommends using a shielded enclosure, keeping the module away from sensitive components, and using a common-mode choke or filter on the input lines. Additionally, the module's output should be decoupled from the input using a suitable filter or capacitor.
The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may cause instability or oscillation in the module. It's essential to follow the recommended output filter configuration and component values to ensure stable operation.
Yes, the SUCS62412C can be used in a redundant or parallel configuration to achieve higher power ratings or redundancy. However, it's crucial to ensure proper synchronization and control of the modules to prevent damage or instability. Cosel recommends consulting their application notes and technical support for guidance on implementing such configurations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SUCS62412C Overview

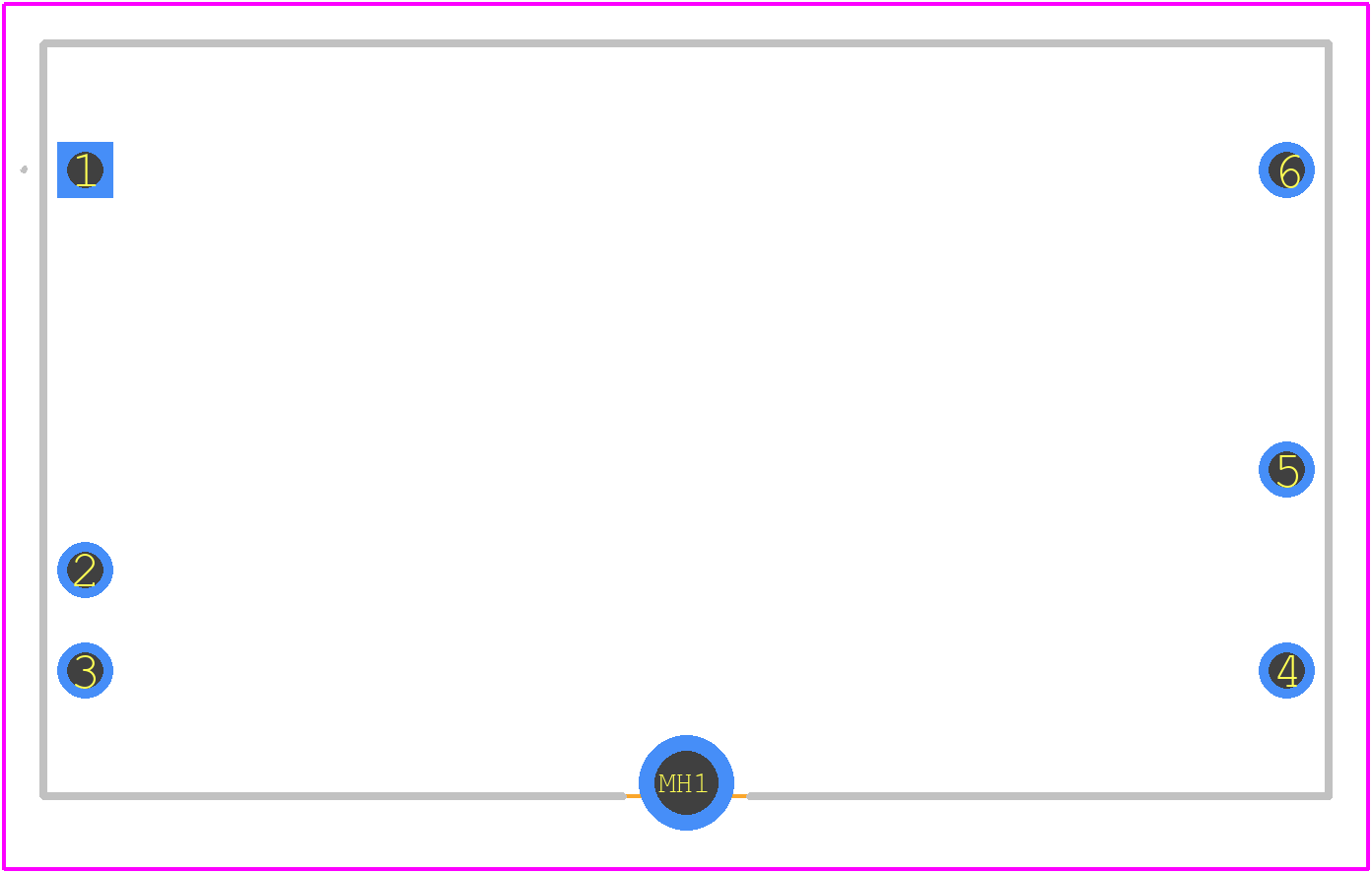

Use the download button to access the SUCS62412C schematic symbol, PCB footprint, and 3D model.
