SUCS6243R3C - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout 3.3V dc, I/O isolation 500V ac

Download SUCS6243R3C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SUCS6243R3C - Cosel - PCB symbol
click to zoom
PCB Footprints

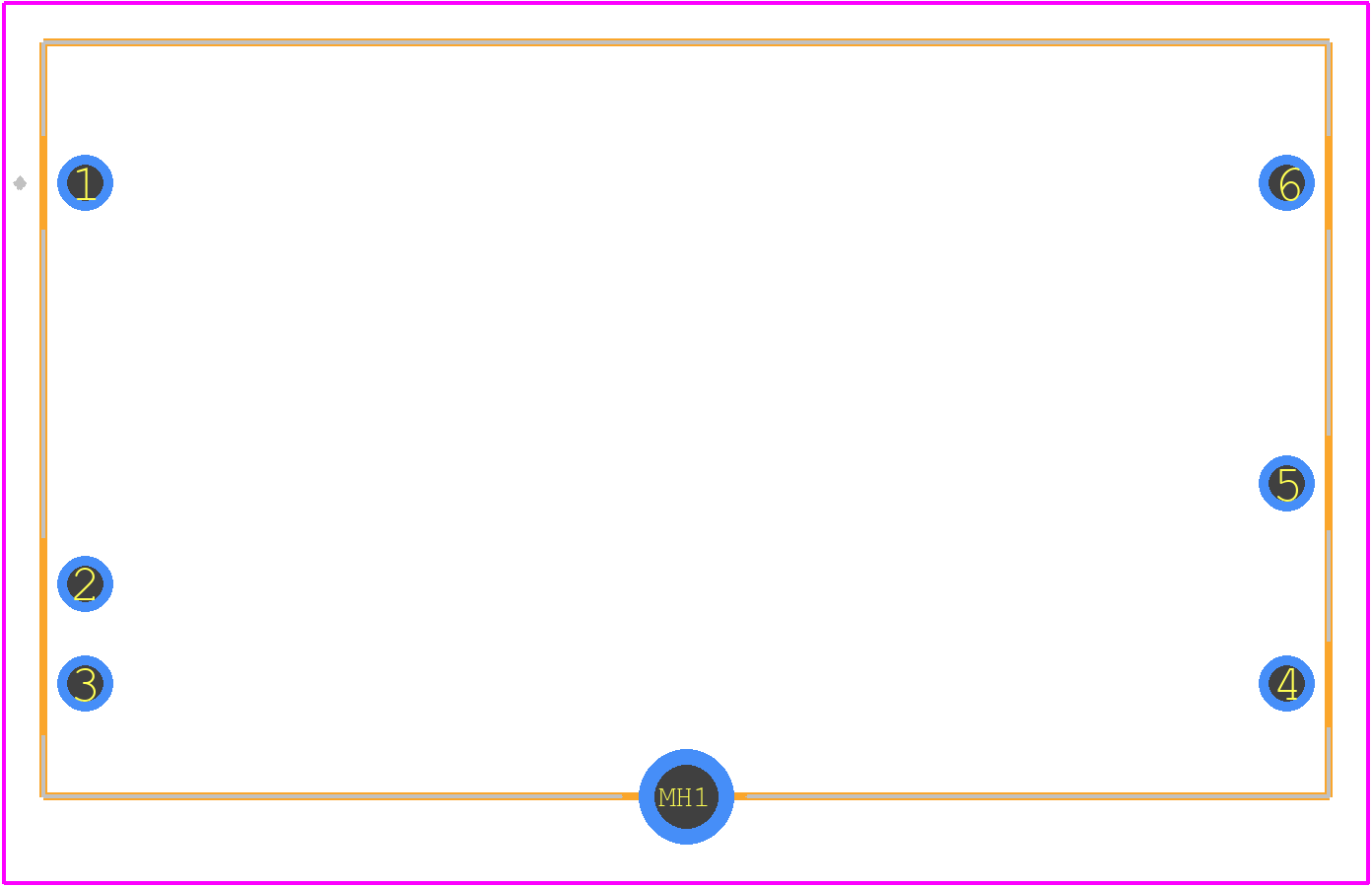

SUCS6243R3C - Cosel PCB footprint - Other - Other - SUCS6243R3C-2
click to zoom
3D Models
SUCS6243R3C - Cosel - 3D model - Other - SUCS6243R3C-2
click to zoom

SUCS6243R3C Details

  • Manufacturer Part Number:

    SUCS6243R3C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-T6

  • Length:

    32.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    3.465 V

  • Output Voltage-Min:

    3.135 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    4.46 W

  • Trim/Adjustable Output:

    YES

  • Width:

    19.1 mm

SUCS6243R3C Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat transfer.
  • To ensure reliable start-up and shutdown, Cosel recommends a soft-start circuit to limit inrush current, and a shutdown circuit with a voltage supervisor to prevent voltage drops.
  • Cosel provides derating curves in the datasheet, but for specific high-temperature applications, engineers can contact Cosel's technical support for customized derating curves.
  • Yes, the SUCS6243R3C can be used in redundant or parallel configurations, but engineers should ensure proper synchronization and current sharing to prevent uneven stress on the modules.
  • Cosel recommends using a CISPR 22 Class B compliant EMI filter with a minimum attenuation of 30dB at 150kHz to ensure electromagnetic compatibility.
