SUCW101212C - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 9 → 18 V dc, Vout ±12V dc, I/O isolation 500V ac

Download SUCW101212C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

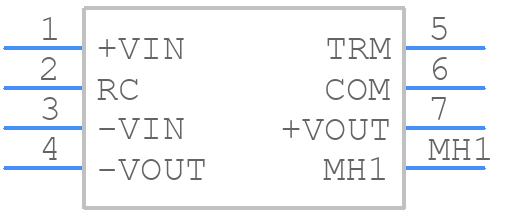

SUCW101212C - Cosel - PCB symbol
click to zoom
PCB Footprints

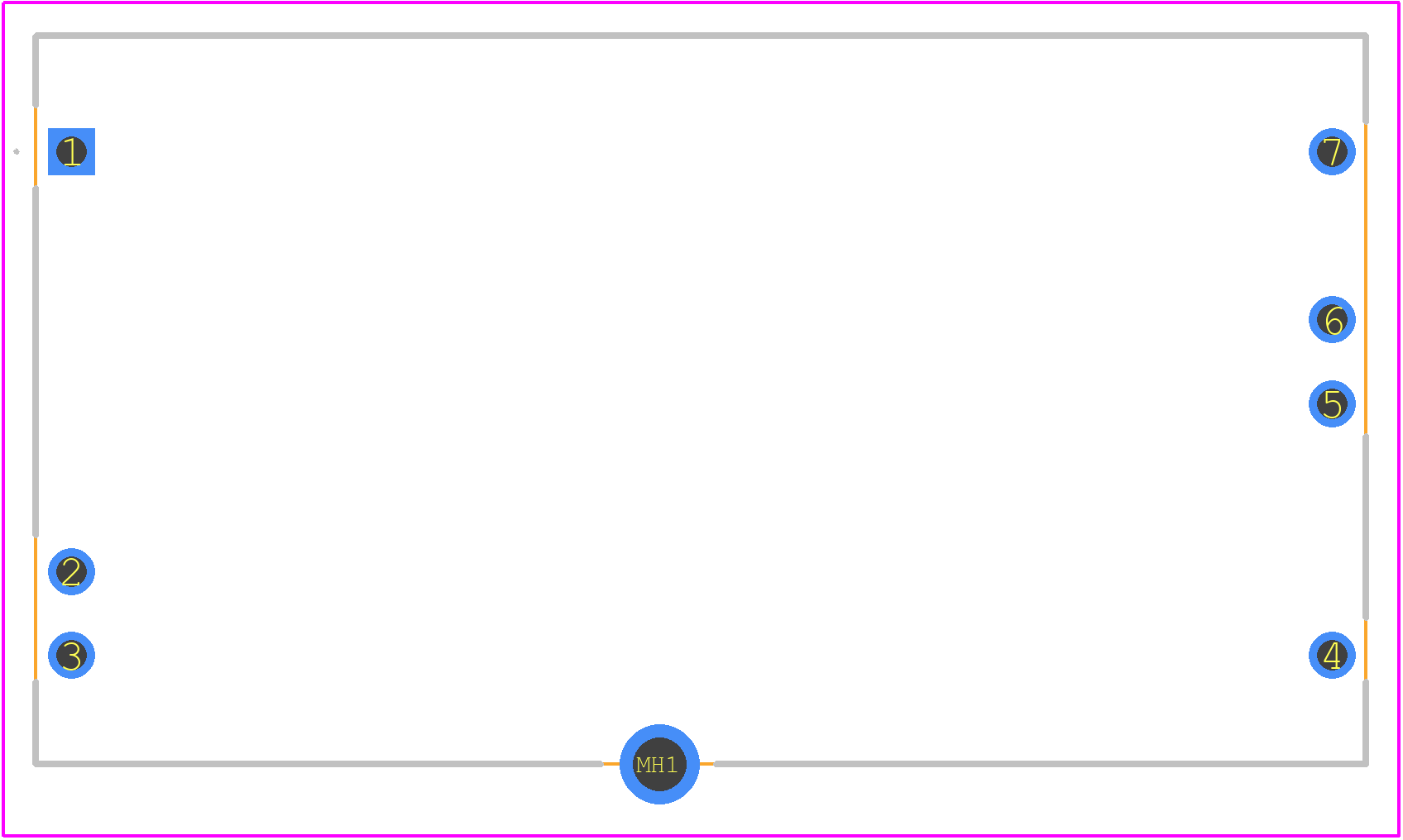

SUCW101212C - Cosel PCB footprint - Other - Other - SUCW101212C
click to zoom
3D Models
SUCW101212C - Cosel - 3D model - Other - SUCW101212C
click to zoom

SUCW101212C Details

  • Manufacturer Part Number:

    SUCW101212C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -12, 24V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-T7

  • Length:

    40.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    10.8 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22 mm

SUCW101212C Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, Cosel recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet the relevant EMC standards.
  • The maximum allowable capacitance for the output filter is 1000uF, but it's recommended to use a value between 220uF to 470uF for optimal performance and stability.
  • Yes, the SUCW101212C is designed to withstand vibrations up to 10G, but it's recommended to follow the mounting and screw torque guidelines in the datasheet to ensure reliable operation.
  • Cosel recommends following the troubleshooting guide in the datasheet, which includes checking the input voltage, output current, and temperature, as well as verifying the correct installation and configuration of the module.
