Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the SUCW101215C is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure EMC, Cosel recommends using a metal enclosure, keeping the module at least 1 inch away from other components, and using a common-mode choke or EMI filter on the input lines. Additionally, follow proper PCB layout and grounding practices.
Cosel recommends using an output filter capacitance of 10uF to 47uF, with a maximum allowable capacitance of 100uF. Exceeding this value may affect the module's stability and performance.
Yes, the SUCW101215C can be used in redundant or parallel configurations, but it's essential to follow Cosel's guidelines for synchronization and current sharing to ensure reliable operation and prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SUCW101215C Overview

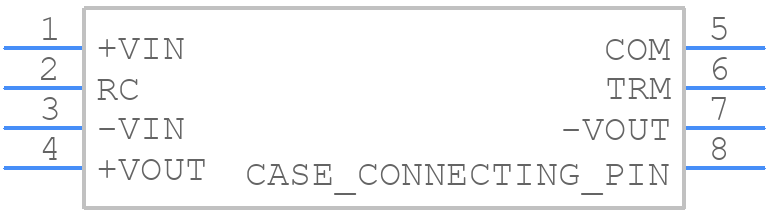

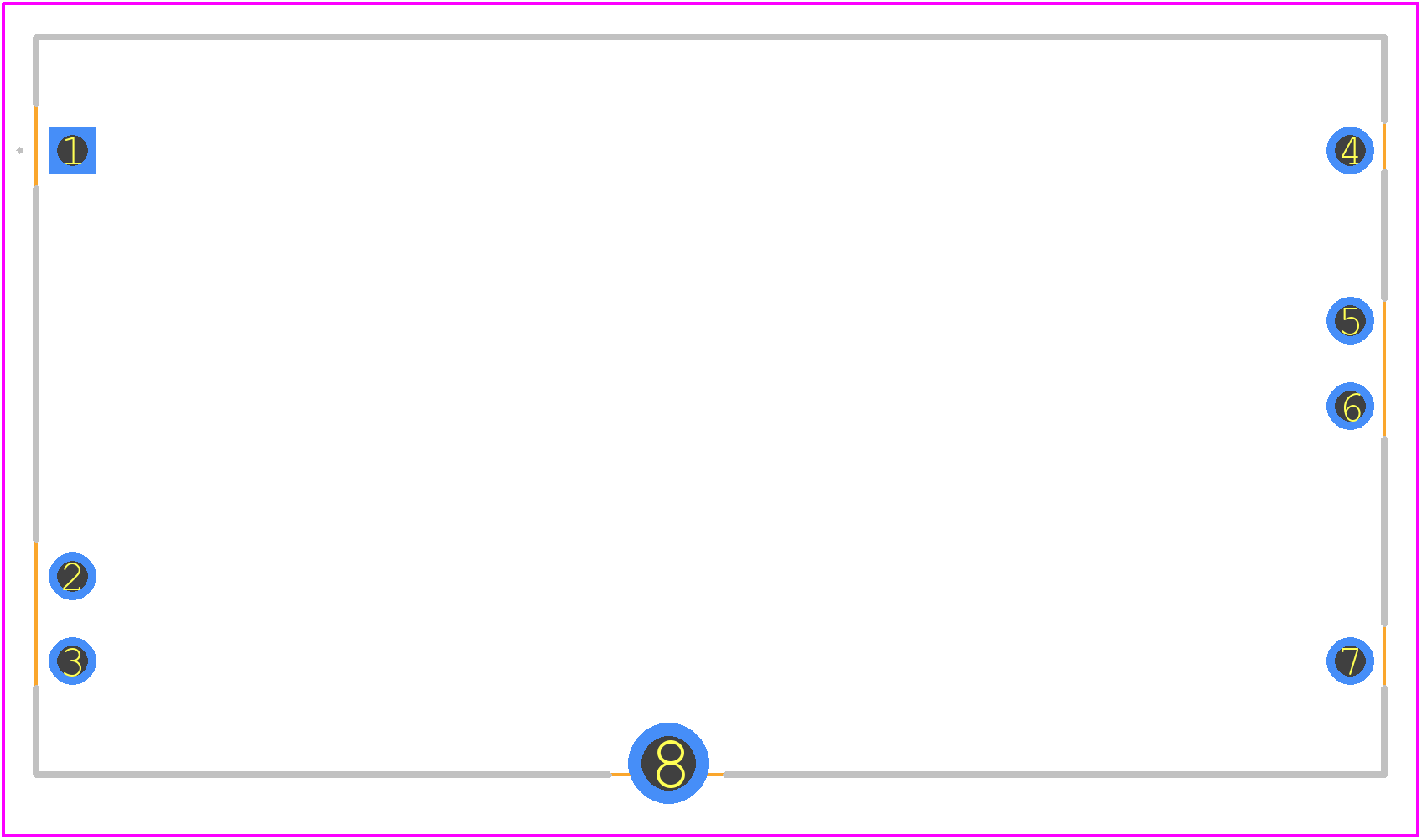

Use the download button to access the SUCW101215C schematic symbol, PCB footprint, and 3D model.
