SUCW102412B - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout ±12V dc, I/O isolation 500V ac

Download SUCW102412B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

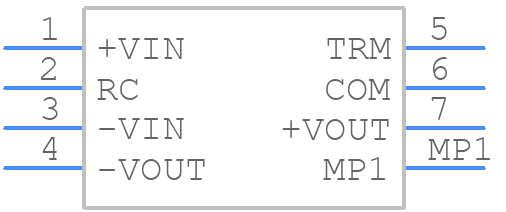

SUCW102412B - Cosel - PCB symbol
click to zoom
PCB Footprints

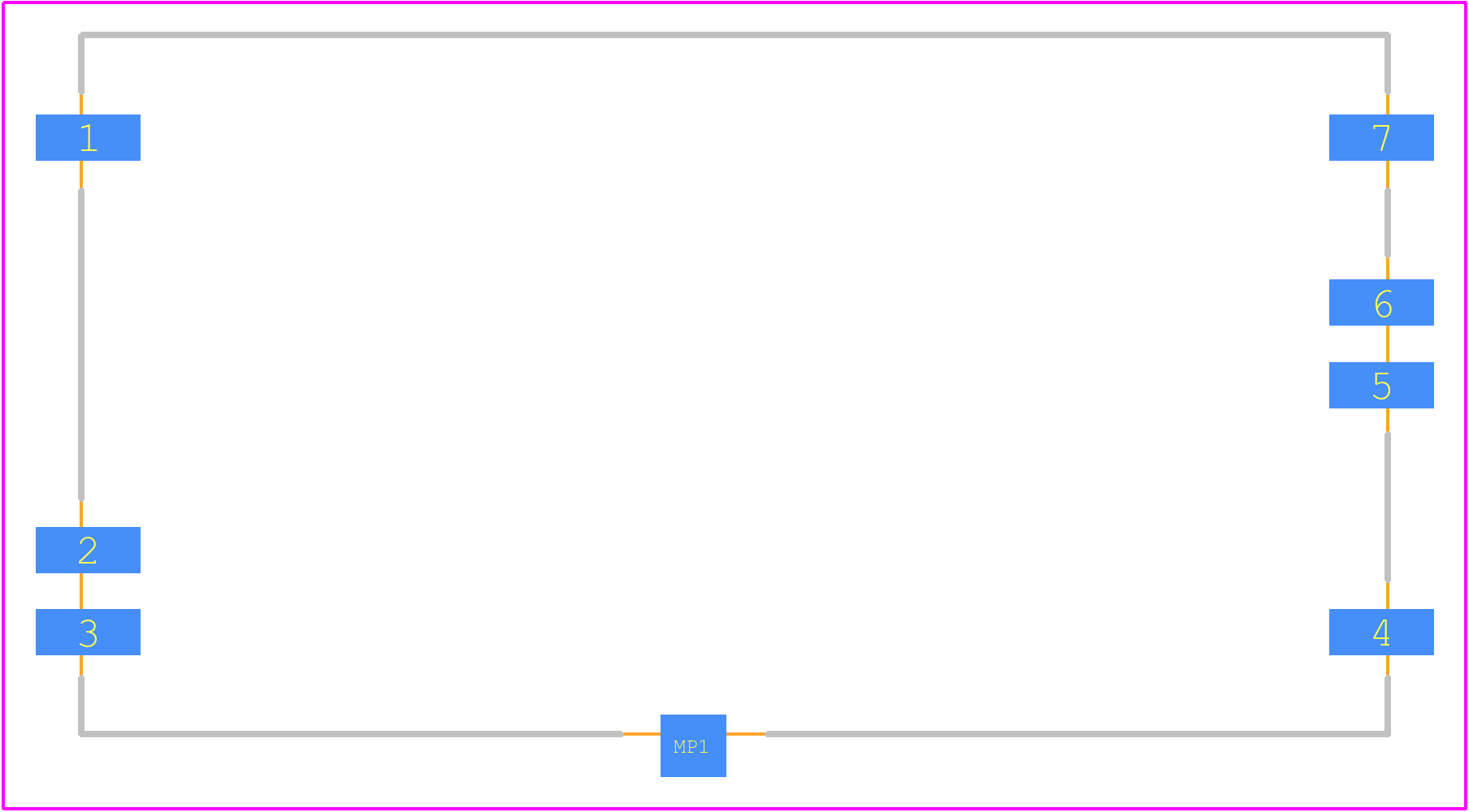

SUCW102412B - Cosel PCB footprint - Other - Other - SUCW102412B-3
click to zoom
3D Models
SUCW102412B - Cosel - 3D model - Other - SUCW102412B-3
click to zoom

SUCW102412B Details

  • Manufacturer Part Number:

    SUCW102412B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -12, 24V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-G7

  • Length:

    40.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    10.8 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22 mm

SUCW102412B Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the tab of the SUCW102412B, and multiple vias to dissipate heat effectively. A minimum of 2 oz copper thickness is recommended.
  • Yes, the SUCW102412B is designed to withstand high vibrations. However, it's essential to ensure proper mounting and screw torque to prevent damage. Cosel recommends following the mounting instructions and torque specifications in the datasheet.
  • The SUCW102412B meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance with your specific requirements, contact Cosel's technical support or a local representative for customized certification support.
  • Cosel recommends derating the capacitance by 20% to ensure reliable operation and to account for component tolerances. This derating will help prevent overvoltage stress and ensure the converter's reliability.
  • Yes, you can parallel multiple SUCW102412B units, but it's crucial to ensure proper synchronization and current sharing. Cosel recommends consulting their application notes and technical support for guidance on paralleling multiple units.
