ADDITIONAL -15V OUTPUT AVAILABLE, 30V OUTPUT IS AVAILABLE WHEN PINS ARE SHORTED
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
9 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-XDMA-T6
Length:
22.4 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Output Voltage-Max:
15.75 V
Output Voltage-Min:
14.25 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
7.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
1.5 W
Trim/Adjustable Output:
YES
Width:
12.7 mm
SUCW1R50515C Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing the DC/DC converter near a metal edge of the PCB, using a large copper area for heat dissipation, and ensuring good airflow around the component.
To ensure EMC, use a metal enclosure, keep the module away from sensitive circuits, use a common-mode choke, and add EMI filters to the input and output lines.
The maximum capacitance on the output depends on the specific application, but as a general rule, it's recommended to keep the output capacitance below 10uF to avoid stability issues.
Yes, the SUCW1R50515C is designed to withstand vibrations up to 10G, but it's recommended to follow the manufacturer's guidelines for mounting and securing the module to ensure reliable operation.
To troubleshoot issues, check the input voltage, output voltage, and current, and verify that the module is properly connected and configured. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SUCW1R50515C Overview

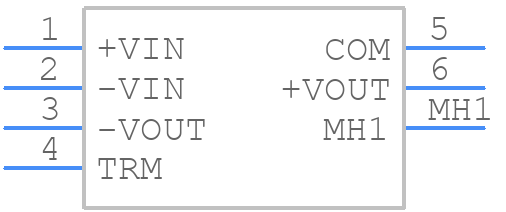

Use the download button to access the SUCW1R50515C schematic symbol, PCB footprint, and 3D model.
