ADDITIONAL -12V OUTPUT AVAILABLE, 24V OUTPUT IS AVAILABLE WHEN PINS ARE SHORTED
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XDMA-T6
Length:
22.4 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Output Voltage-Max:
12.6 V
Output Voltage-Min:
11.4 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
7.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
1.56 W
Trim/Adjustable Output:
YES
Width:
12.7 mm
SUCW1R51212C Frequently Asked Questions (FAQs)
Cosel recommends a PCB layout with a large copper area underneath the module, connected to a solid ground plane, to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended.
Yes, the SUCW1R51212C is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure reliability in high-temperature applications, it's crucial to maintain a maximum junction temperature (Tj) of 125°C. Monitor the module's temperature and adjust the cooling system accordingly. Also, consider derating the output power to prevent overheating.
Cosel recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and system requirements. The fuse should be able to handle the inrush current during startup and provide protection against overcurrent conditions.
Yes, you can parallel multiple SUCW1R51212C modules to increase the output power. However, it's essential to ensure that the modules are identical, and the output voltages are matched within 1% to prevent uneven current sharing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SUCW1R51212C Overview

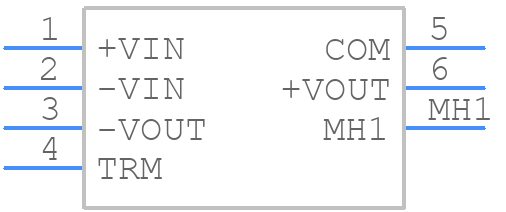

Use the download button to access the SUCW1R51212C schematic symbol, PCB footprint, and 3D model.
