SUCW1R52412B footprint, schematic symbol and 3D model by Cosel

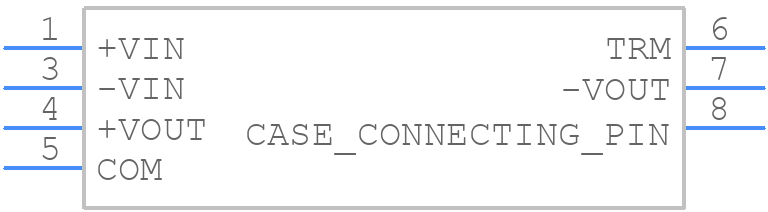

Symbol

click to zoom

PCB Footprints

SUCW1R52412B - Cosel PCB footprint - Other - Other - SUCW1R52412B-4

click to zoom

3D Models

SUCW1R52412B - Cosel - 3D model - Other - SUCW1R52412B-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SUCW1R52412B
Part Number SUCW1R52412B
Manufacturer Cosel
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - SUCW1R52412B-4
Released Date Jul 31, 2025
Last Modified Date Jul 31, 2025 9:32 AM UTC
Pinout / Pin List Click Here (Member Only)

SUCW1R52412B Details

Manufacturer Part Number:
SUCW1R52412B
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, SMD-6
ECCN Code:
EAR99
Manufacturer:
Cosel USA Inc
YTEOL:
6
Additional Feature:
ADDITIONAL -12V OUTPUT AVAILABLE, 24V OUTPUT IS AVAILABLE WHEN PINS ARE SHORTED
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-G6
Length:
22.4 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Output Voltage-Max:
12.6 V
Output Voltage-Min:
11.4 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
245
Seated Height-Max:
7.5 mm
Surface Mount:
YES
Technology:
HYBRID
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
10
Total Power Output-Max:
1.56 W
Trim/Adjustable Output:
YES
Width:
12.7 mm

SUCW1R52412B Frequently Asked Questions (FAQs)

Cosel recommends a PCB layout with a large copper area connected to the tab of the SUCW1R52412B to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the SUCW1R52412B is designed to withstand high vibrations. However, it's essential to ensure that the unit is properly secured to the PCB and the PCB is rigid enough to prevent damage. Cosel recommends following the IPC-9592 standard for vibration testing.
The maximum allowed capacitance load for the SUCW1R52412B is 10,000 uF. Exceeding this value may cause instability or oscillation in the converter.
Yes, it is possible to parallel multiple SUCW1R52412B units to increase the output power. However, it's essential to ensure that the units are identical and properly synchronized to prevent oscillation or instability. Cosel recommends consulting with their application engineers for guidance on paralleling multiple units.
Cosel recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and the specific application. The fuse should be able to handle the inrush current of the converter during startup.

Trust Checks

Community Provided

System Verified

Community Approved

SUCW1R52412B Overview

Use the download button to access the SUCW1R52412B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SUCW1, or try a keyword search, such as Power Supply Modules
