SUCW62415B - Cosel

Description: Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 18V - 36V Input

Download SUCW62415B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

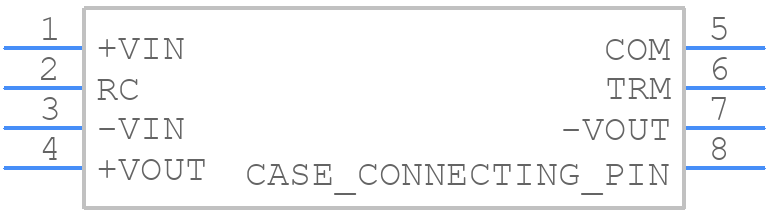

SUCW62415B - Cosel - PCB symbol
click to zoom
PCB Footprints

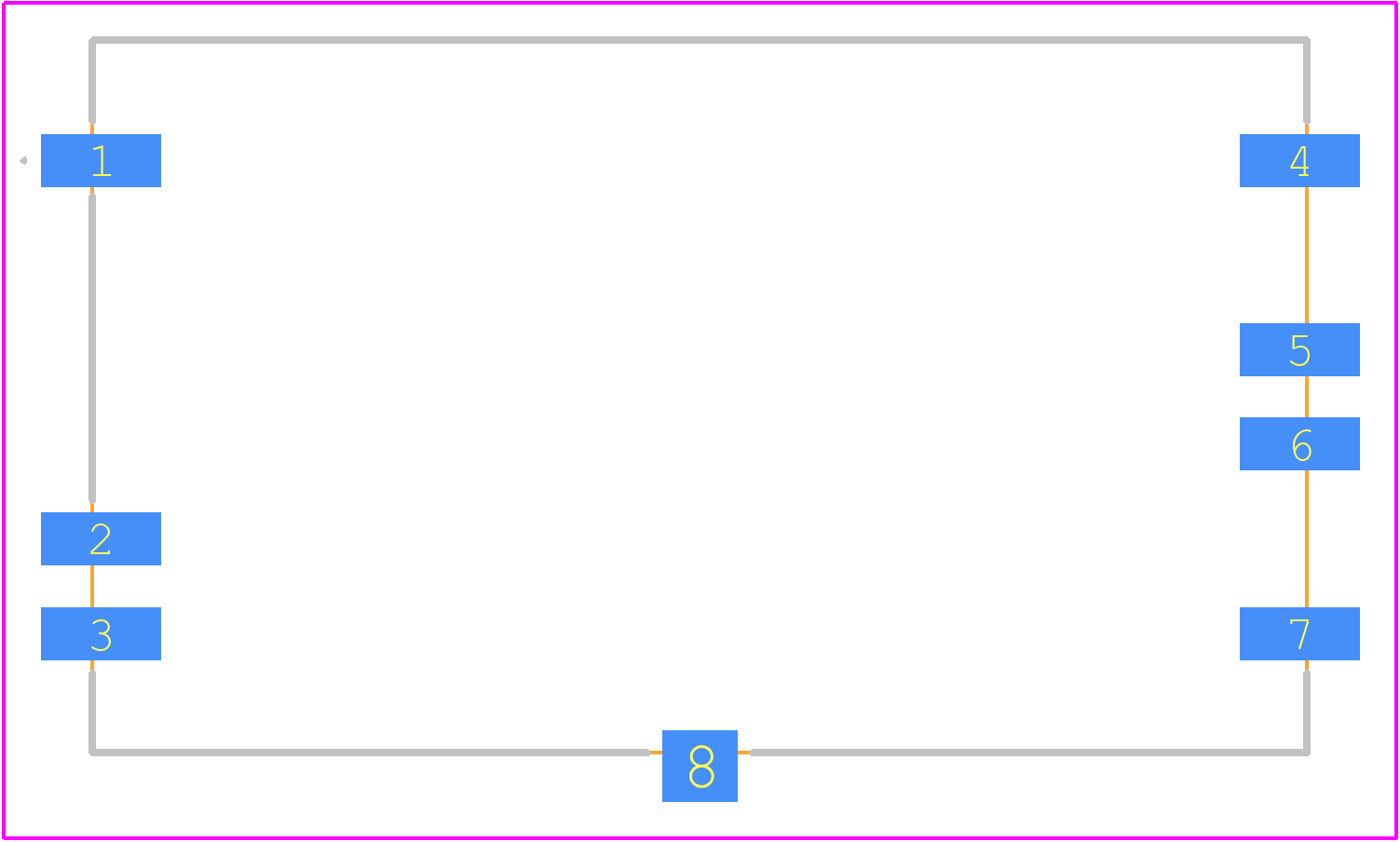

SUCW62415B - Cosel PCB footprint - Other - Other - SUCW62415B-1
click to zoom
3D Models
SUCW62415B - Cosel - 3D model - Other - SUCW62415B-1
click to zoom

SUCW62415B Details

  • Manufacturer Part Number:

    SUCW62415B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    SMD-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -15V OUTPUT AVAILABLE; ALSO AVAILABLE WITH SINGLE OUTPUT OF 30V

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-G7

  • Length:

    32.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    14.25 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    YES

  • Width:

    19.1 mm

SUCW62415B Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable start-up and shutdown, Cosel recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the output voltage and prevent damage during power-up and power-down sequences.
  • The maximum allowed capacitance on the output of the SUCW62415B is 2200uF. Exceeding this value may cause instability or oscillation in the converter.
  • The SUCW62415B is designed to operate up to 5000m altitude. However, derating of the output power may be necessary above 3000m to ensure reliable operation. Consult Cosel's application notes for more information.
  • Cosel recommends using an oscilloscope to monitor the output voltage and current waveforms, and checking the input voltage, output load, and PCB layout for any anomalies. Consult the datasheet and application notes for more troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SUCW62415B Overview

Use the download button to access the SUCW62415B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SUCW6, or try a keyword search, such as Power Supply Modules
