SUM110P08-11L-E3 - Vishay

Description: MOSFET 80V 110A 375W

Download SUM110P08-11L-E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

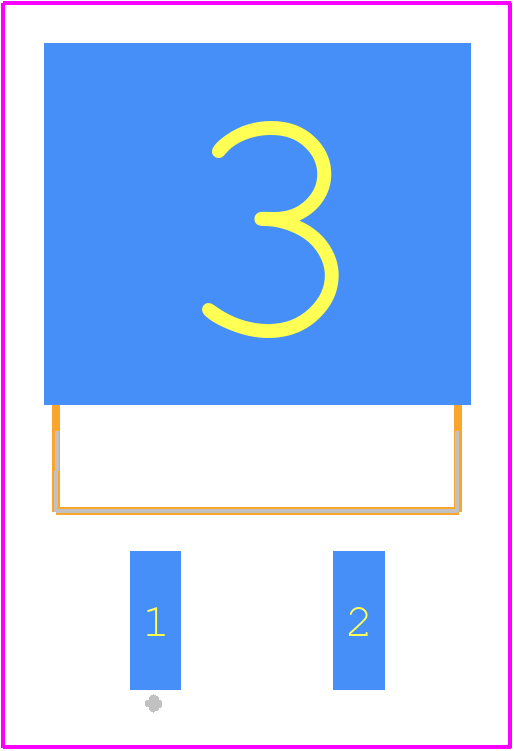

SUM110P08-11L-E3 - Vishay PCB footprint - Other - Other - TO-263 (D2PAK): 3-LEAD
click to zoom
3D Models
SUM110P08-11L-E3 - Vishay  - 3D model - Other - TO-263 (D2PAK): 3-LEAD
click to zoom

SUM110P08-11L-E3 Details

  • Manufacturer Part Number:

    SUM110P08-11L-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, TO-263, 3 PIN

  • Country Of Origin:

    Israel

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    281 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    110 A

  • Drain-source On Resistance-Max:

    0.0112 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    375 W

  • Pulsed Drain Current-Max (IDM):

    120 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
