SUS100505BP - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 4.5 → 9 V dc, Vout 5V dc, I/O isolation 500V ac

Download SUS100505BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SUS100505BP - Cosel - PCB symbol
click to zoom
PCB Footprints

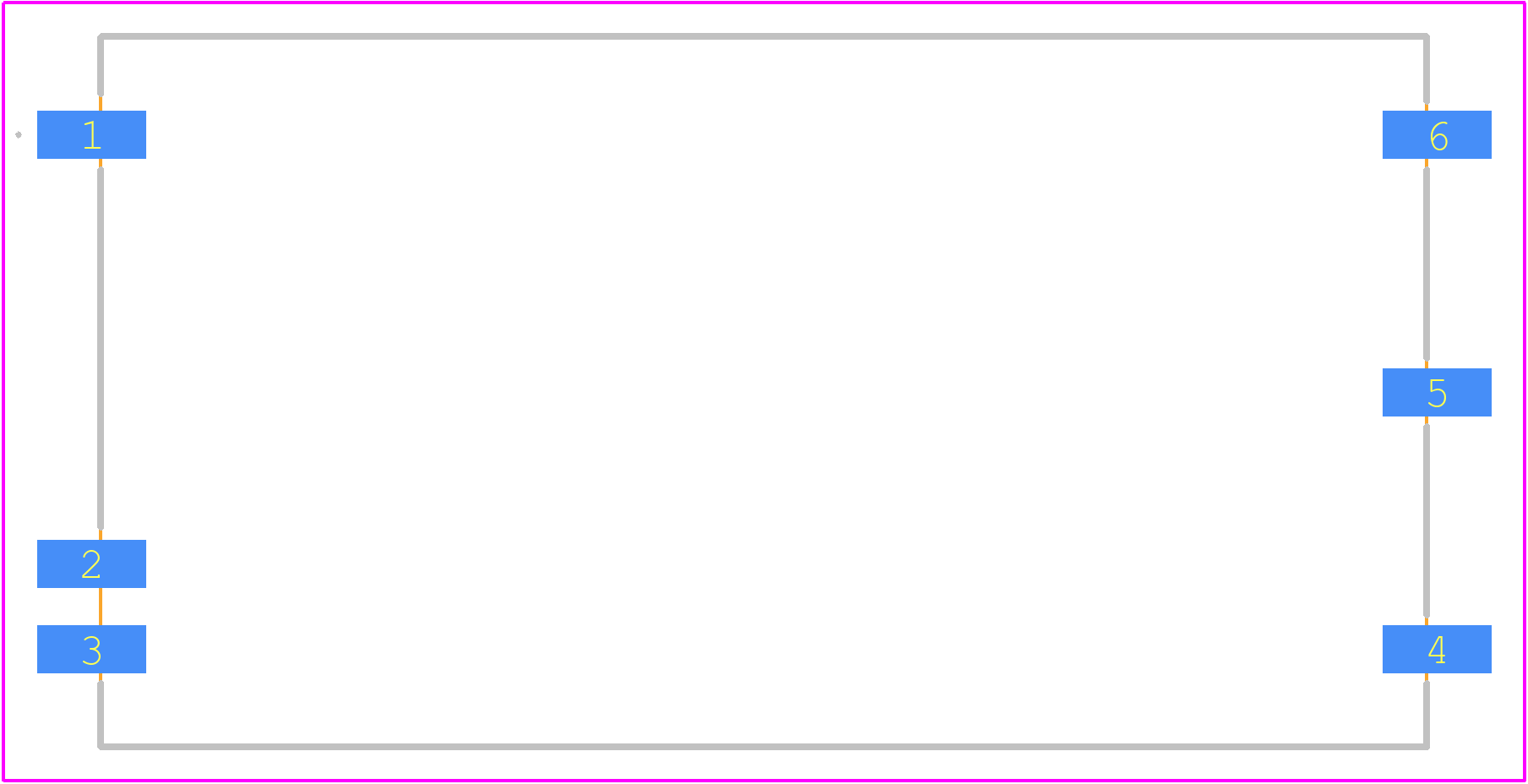

SUS100505BP - Cosel PCB footprint - Other - Other - 6-SMD Module
click to zoom
3D Models
SUS100505BP - Cosel - 3D model - Other - 6-SMD Module
click to zoom

SUS100505BP Details

  • Manufacturer Part Number:

    SUS100505BP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, SMD-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-G6

  • Length:

    39.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    YES

  • Width:

    21 mm

SUS100505BP Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area under the module, connected to a solid ground plane, to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up and operation with a high-capacitance output filter, Cosel recommends adding a soft-start circuit or a current-limiting circuit to prevent excessive inrush current.
  • The maximum allowed voltage deviation on the input pins is ±10% of the nominal input voltage. Exceeding this limit may affect the module's reliability and performance.
  • Yes, the SUS100505BP is designed to operate up to 5,000 meters (16,400 ft) above sea level. However, derating of the output power may be necessary to ensure reliable operation.
  • Cosel recommends using a fault detection and isolation circuit to monitor the module's operation. Additionally, checking the input and output voltages, currents, and temperatures can help identify potential issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SUS100505BP Overview

Use the download button to access the SUS100505BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SUS10, or try a keyword search, such as Power Supply Modules
