SUS102405BP - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout 5V dc, I/O isolation 500V ac

Download SUS102405BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SUS102405BP - Cosel - PCB symbol
click to zoom
PCB Footprints

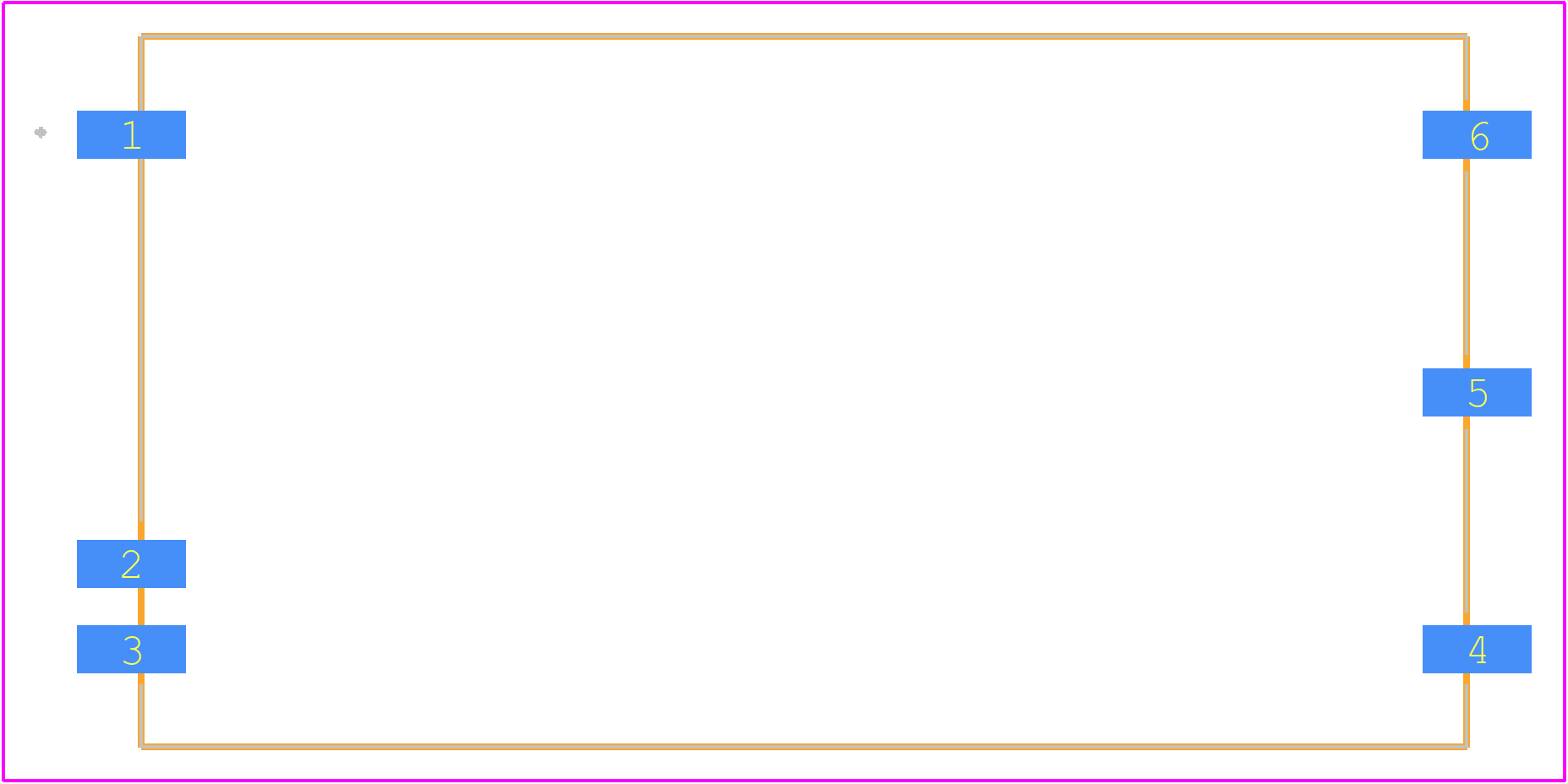

SUS102405BP - Cosel PCB footprint - Other - Other - SUS10 (SMD)
click to zoom
3D Models
SUS102405BP - Cosel - 3D model - Other - SUS10 (SMD)
click to zoom

SUS102405BP Details

  • Manufacturer Part Number:

    SUS102405BP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, SMD-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-G6

  • Length:

    39.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    YES

  • Width:

    21 mm

SUS102405BP Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the tab of the SUS102405BP to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
  • Yes, the SUS102405BP is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Cosel recommends following the IPC-9592 standard for vibration testing.
  • Cosel recommends that the capacitance mismatch between the input and output capacitors should not exceed 10% to ensure stable operation and minimize the risk of oscillation.
  • The SUS102405BP is designed to operate in a dry environment. If the device is to be used in a humid or wet environment, it's essential to take additional precautions such as conformal coating, potting, or using a sealed enclosure to prevent moisture ingress.
  • Cosel recommends using a fuse with a rating of 5A to 10A, depending on the specific application and input voltage. The fuse should be able to handle the maximum input current and provide adequate protection against overcurrent conditions.
