SUS6053R3C - Cosel

Description: Cosel 3.96W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out 3.3V dc

Download SUS6053R3C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

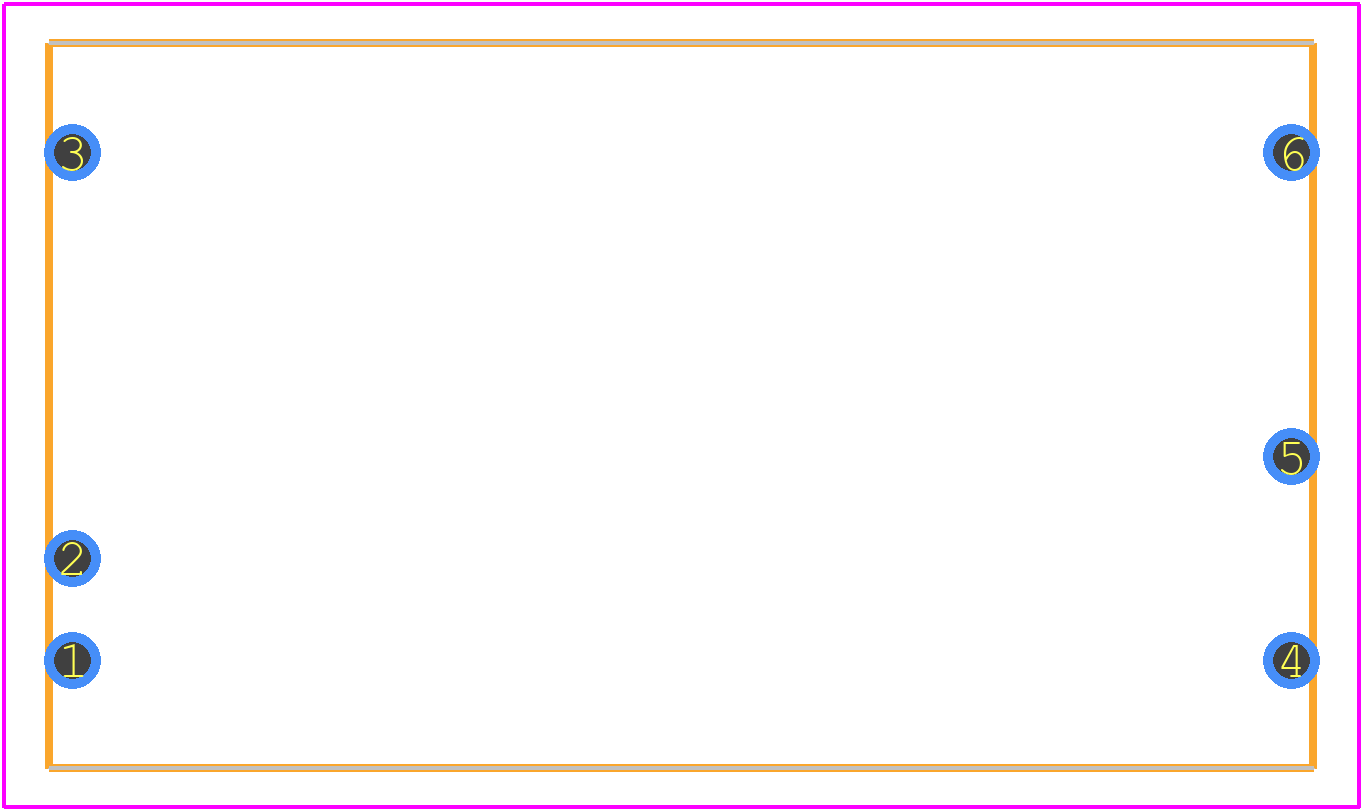

SUS6053R3C - Cosel PCB footprint - Other - Other - SUS6053R3C-2
click to zoom
3D Models
SUS6053R3C - Cosel  - 3D model - Other - SUS6053R3C-2
click to zoom

SUS6053R3C Details

  • Manufacturer Part Number:

    SUS6053R3C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-T6

  • Length:

    31.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    3.465 V

  • Output Voltage-Min:

    3.135 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    3.96 W

  • Trim/Adjustable Output:

    YES

  • Width:

    18.1 mm

SUS6053R3C Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the tab of the SUS6053R3C to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-vibration environments, Cosel recommends securing the SUS6053R3C to the PCB using screws or a suitable adhesive, and ensuring that the PCB is properly secured to the chassis or enclosure. Additionally, the use of conformal coating or potting can help to further reduce the risk of vibration-induced failures.
  • Cosel recommends that the capacitance mismatch between the input and output capacitors should not exceed 10% to ensure stable operation and minimize the risk of oscillation. It is also important to follow the recommended capacitor values and types specified in the datasheet.
  • Yes, the SUS6053R3C can be used in a redundant or parallel configuration to achieve higher power ratings or to improve system reliability. However, it is essential to follow proper design and layout guidelines to ensure that the modules are properly synchronized and that the system can handle the increased power and thermal requirements.
  • Cosel recommends using a common-mode choke and a differential-mode filter capacitor to reduce EMI emissions and improve system immunity. The specific filter configuration will depend on the system requirements and the operating environment, but a typical configuration would include a 1-10 μH common-mode choke and a 10-100 nF differential-mode filter capacitor.
