SUS62405C - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout 5V dc, I/O isolation 500V ac

Download SUS62405C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SUS62405C - Cosel - PCB symbol
click to zoom
PCB Footprints

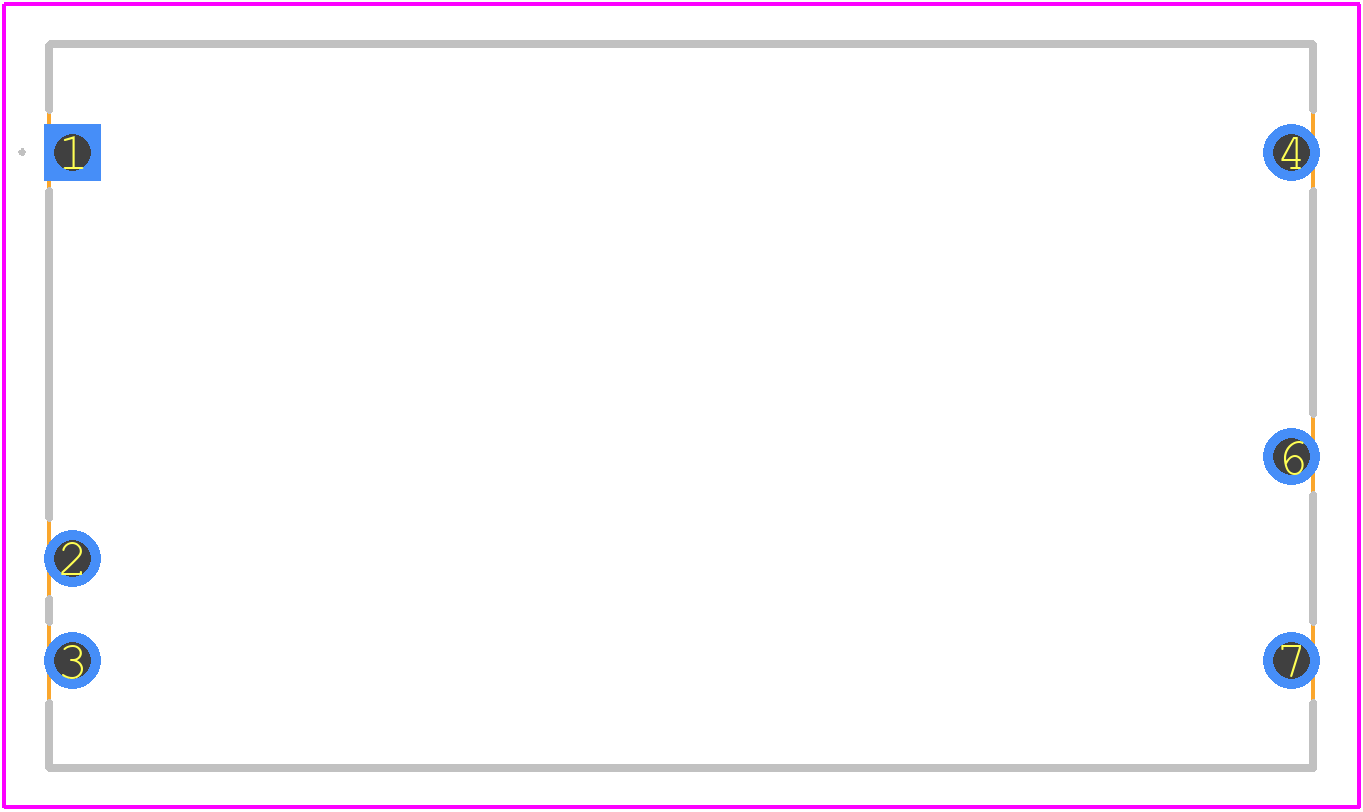

SUS62405C - Cosel PCB footprint - Other - Other - 6-DIP_2025
click to zoom
3D Models
SUS62405C - Cosel - 3D model - Other - 6-DIP_2025
click to zoom

SUS62405C Details

  • Manufacturer Part Number:

    SUS62405C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, DIP-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-T6

  • Length:

    31.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    YES

  • Width:

    18.1 mm

SUS62405C Frequently Asked Questions (FAQs)

  • Cosel recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 1 inch x 1 inch of copper area is recommended for heat sinking.
  • Cosel recommends following the CISPR 22 and EN 55022 standards for EMC compliance. Ensure proper grounding, use of EMI filters, and shielding to minimize electromagnetic interference.
  • The derating curve is available upon request from Cosel. It shows the maximum output power vs. ambient temperature. For example, at 50°C, the output power is derated by 10% to ensure reliable operation.
  • Yes, the SUS62405C can be used in redundant or N+1 configurations. However, it's essential to ensure proper synchronization and control of the modules to prevent unwanted interactions.
  • The MTBF of the SUS62405C is calculated to be >1,000,000 hours, based on MIL-HDBK-217F, Notice 2. This ensures high reliability and long-term operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SUS62405C Overview

Use the download button to access the SUS62405C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SUS62, or try a keyword search, such as Power Supply Modules
