Cosel recommends a PCB layout with a large copper area connected to the tab of the SUTS32405 to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Cosel's SUTS32405 meets various safety and regulatory standards, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific requirements for your application and ensure the SUTS32405 meets those requirements. You may need to add additional components or design features to meet specific safety and regulatory standards.
The maximum capacitance derating for the SUTS32405 is 10% at 105°C. This means that the capacitance value will decrease by 10% when the operating temperature reaches 105°C. It's essential to consider this derating when designing your power supply to ensure it meets the required specifications.
Yes, the SUTS32405 is designed to withstand high-vibration environments. However, it's essential to ensure the PCB is properly secured and the component is mounted correctly to prevent damage or dislodging. Cosel recommends following the recommended mounting procedure and using a suitable adhesive or mechanical fastening method to secure the component.
Cosel recommends storing the SUTS32405 in a dry, cool place with a temperature range of 10°C to 30°C and a relative humidity of 60% or less. The component should be stored in its original packaging or a similar protective package to prevent damage or contamination.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SUTS32405 Overview

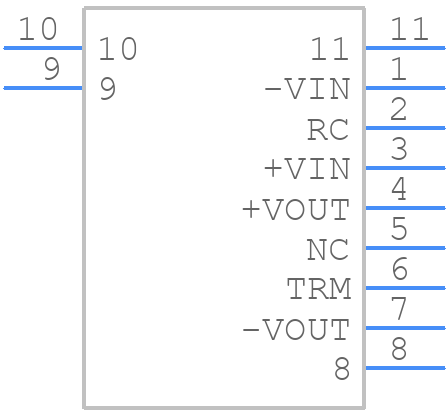

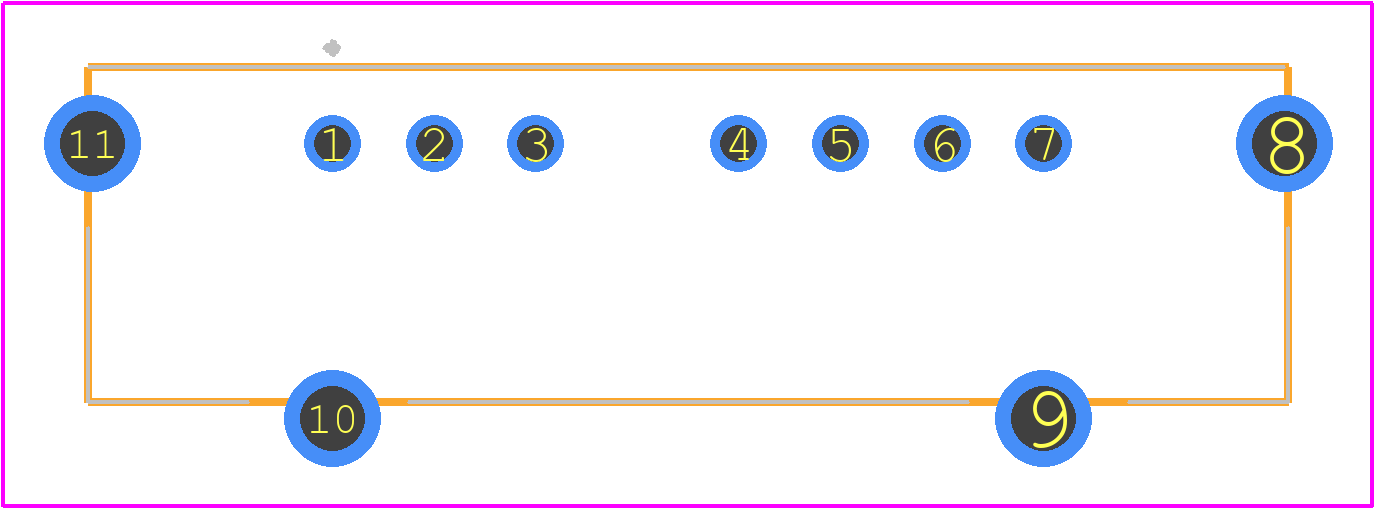

Use the download button to access the SUTS32405 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SUTS3,
or try a keyword search, such as Power Supply Modules
