SV03GA271KAA - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded 2kV 270pF C0G(NP0) 1 0 % 6.99 mm , THROUGH HOLE , - 55 °C to +125 °C

Download SV03GA271KAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SV03GA271KAA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

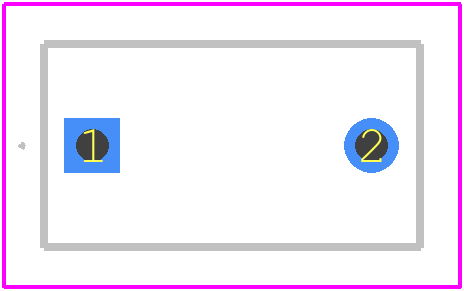

SV03GA271KAA - Kyocera AVX PCB footprint - Other - Other - SV03GA271KAA-2
click to zoom
3D Models
SV03GA271KAA - Kyocera AVX - 3D model - Other - SV03GA271KAA-2
click to zoom

SV03GA271KAA Details

  • Manufacturer Part Number:

    SV03GA271KAA

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    , 3720

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    5.36

  • Capacitance:

    0.00027 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    7.62 mm

  • JESD-609 Code:

    e0

  • Length:

    9.4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    2000 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Pitch:

    6.99 mm

  • Terminal Shape:

    WIRE

  • Width:

    5.08 mm

SV03GA271KAA Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SV03GA271KAA can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • The SV03GA271KAA is a sensitive component and requires proper handling and storage to prevent moisture damage. It is recommended to store the components in a dry, cool place, and to follow the manufacturer's recommended baking and drying procedures before use. Additionally, it is essential to follow proper soldering and assembly techniques to prevent moisture ingress during the assembly process.
  • While the datasheet provides the typical operating temperature range, the maximum operating temperature range may vary depending on the specific application and environment. It is recommended to consult with Kyocera AVX Components' technical support or application engineers to determine the maximum operating temperature range for the specific use case.
  • The SV03GA271KAA is designed to meet the requirements of various industries, including automotive and industrial applications. However, its performance in high-vibration environments may vary depending on the specific application and design. It is recommended to consult with Kyocera AVX Components' technical support or application engineers to determine the suitability of the SV03GA271KAA for high-vibration environments and to discuss potential design considerations and mitigations.
  • To ensure the reliability of the SV03GA271KAA in high-reliability applications, it is essential to follow proper design, assembly, and testing procedures. This includes selecting the correct component for the specific application, following the manufacturer's recommended assembly and soldering procedures, and performing thorough testing and inspection to ensure the component meets the required specifications and standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SV03GA271KAA Overview

Use the download button to access the SV03GA271KAA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SV03G, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
