SVLSA2805S/H+ - VPT Inc

Description: Up to 6 W output power Wide input voltage range: 15 V to 50 V plus 80 V transient Continuous operation over full military temperature range of -55 °C to +125 °C with no power derating Very low output noise Radiation immune magnetic feedback circuit No use of optoisolators Undervoltage lockout Current limit protection / short circuit protection

Download SVLSA2805S/H+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

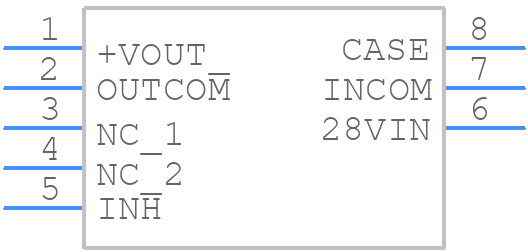

SVLSA2805S/H+ - VPT Inc - PCB symbol
click to zoom
PCB Footprints

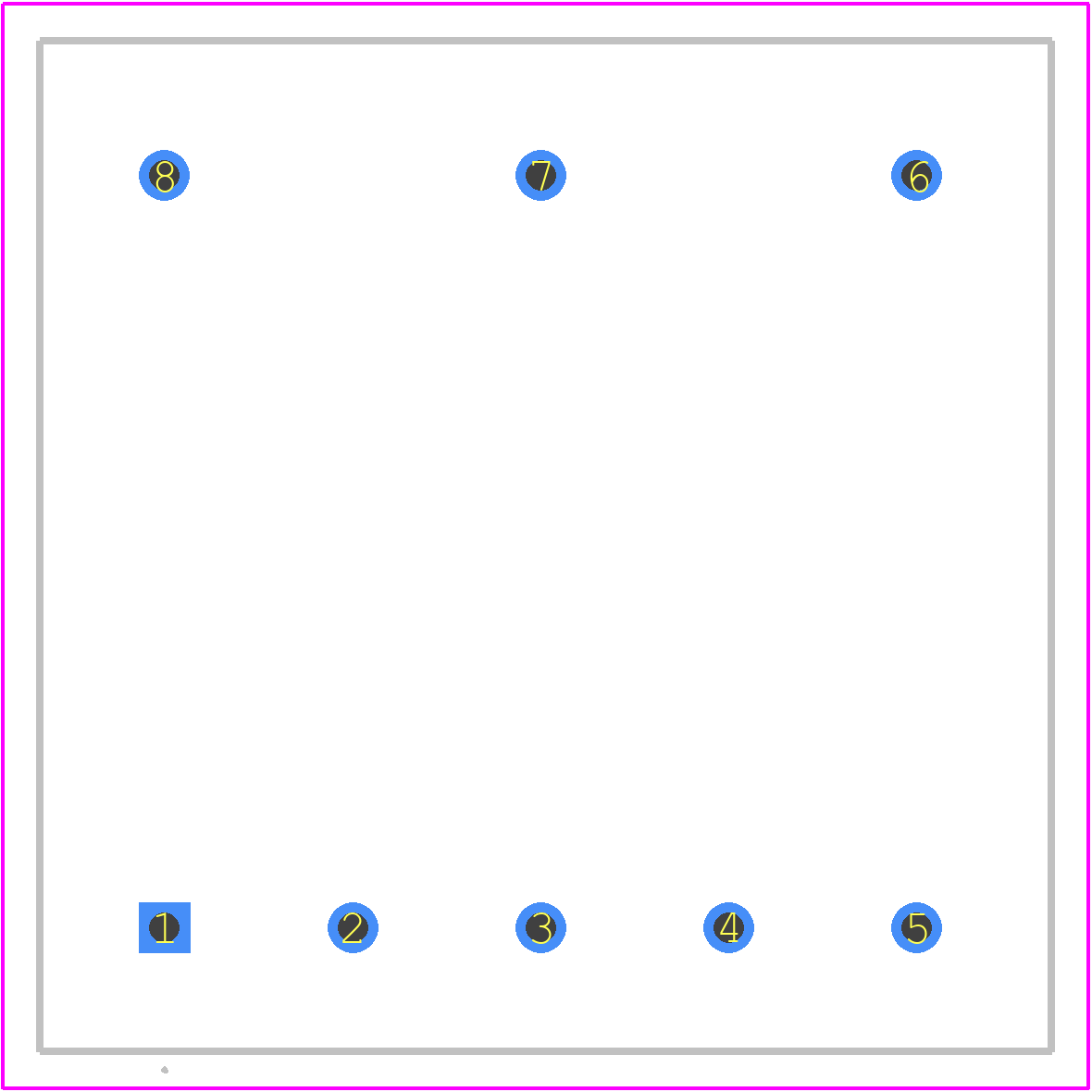

SVLSA2805S/H+ - VPT Inc PCB footprint - Other - Other - SVLSA2805S/H+-1
click to zoom
3D Models
SVLSA2805S/H+ - VPT Inc - 3D model - Other - SVLSA2805S/H+-1
click to zoom

SVLSA2805S/H+ Details

  • Manufacturer Part Number:

    SVLSA2805S/H+

  • Part Life Cycle Code:

    Active Unconfirmed

  • Country Of Origin:

    Taiwan, USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    VPT Inc

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE
