XP Power recommends a PCB layout with a large copper area connected to the tab of the SVR05S05 to dissipate heat effectively. A minimum of 1 square inch of copper is recommended, and the layout should be designed to minimize thermal resistance.
Yes, the SVR05S05 is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. XP Power recommends following the recommended PCB layout and securing the module using the provided screw holes.
The maximum capacitance on the output of the SVR05S05 is not explicitly stated in the datasheet. However, as a general rule, XP Power recommends limiting the output capacitance to 10uF or less to ensure stable operation. Higher capacitance values may cause instability or oscillation.
Yes, the SVR05S05 can be used in a redundant configuration to achieve high reliability. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the redundancy. XP Power recommends consulting with their application engineers for guidance on implementing a redundant configuration.
The typical efficiency of the SVR05S05 is around 85-90% depending on the input voltage, output voltage, and load conditions. However, the actual efficiency may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SVR05S05 Overview

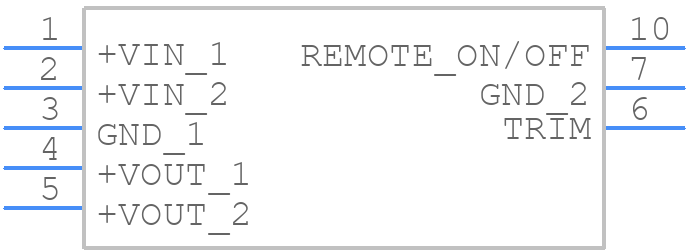

Use the download button to access the SVR05S05 schematic symbol, PCB footprint, and 3D model.
