The maximum power handling of the SWDP.2458.15.4.A.02 antenna is 20W. It's essential to ensure that the power transmitted through the antenna does not exceed this limit to prevent damage or overheating.
Yes, the SWDP.2458.15.4.A.02 antenna is designed to operate in harsh environmental conditions, including extreme temperatures, humidity, and vibrations. It's IP67 rated, making it suitable for outdoor and industrial applications.
The typical impedance of the SWDP.2458.15.4.A.02 antenna is 50 ohms. This impedance is suitable for most wireless communication systems, but it's essential to ensure that the antenna is matched to the transmitter or receiver impedance for optimal performance.
Yes, Taoglas Antenna Solutions offers customization options for the SWDP.2458.15.4.A.02 antenna. Engineers can work with Taoglas to modify the antenna's design, materials, or performance characteristics to meet specific application requirements.
The typical radiation pattern of the SWDP.2458.15.4.A.02 antenna is omnidirectional, with a relatively consistent radiation pattern in the horizontal plane. However, the exact radiation pattern may vary depending on the specific application and environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SWDP.2458.15.4.A.02 Overview

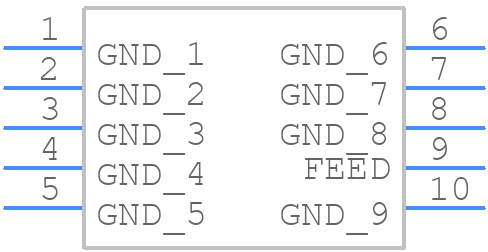

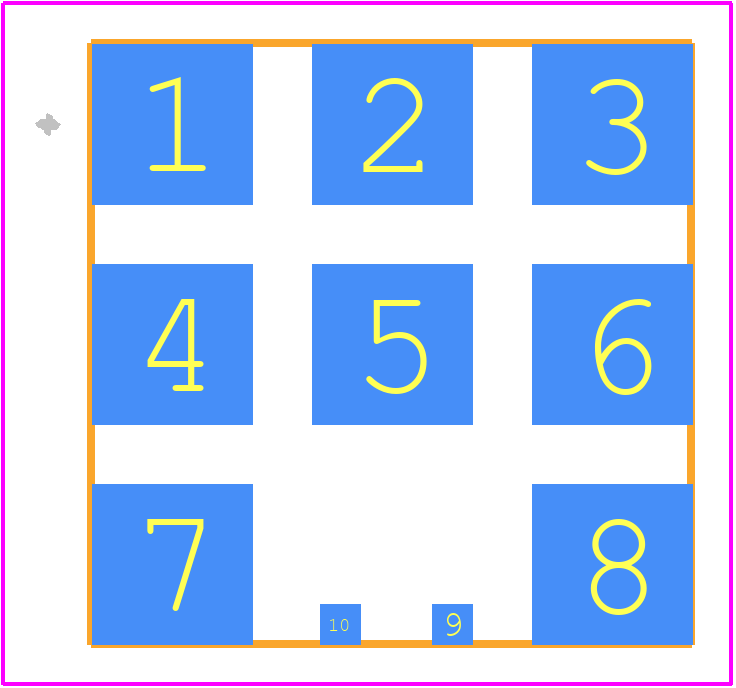

Use the download button to access the SWDP.2458.15.4.A.02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SWDP.,
or try a keyword search, such as RF/Microwave Antennas
