The SX8636I05AULTRT requires a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink for efficient heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the SX8636I05AULTRT away from high-frequency components, and use a common-mode choke or ferrite bead on the power lines. Additionally, follow good PCB layout practices, such as separating analog and digital grounds.
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signals. For power-down, reverse the sequence. Ensure that the power supplies are stable and within the recommended voltage range before applying input signals.
Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltages and ensure they are within the recommended range. Verify that the PCB layout and thermal management are correct. Consult the datasheet and application notes for troubleshooting guidelines.
The SX8636I05AULTRT is sensitive to temperature, humidity, and vibration. Operating conditions that may affect performance and reliability include temperatures above 85°C, humidity above 80%, and vibration exceeding 2G. Ensure that the device is operated within the recommended environmental and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SX8636I05AULTRT Overview

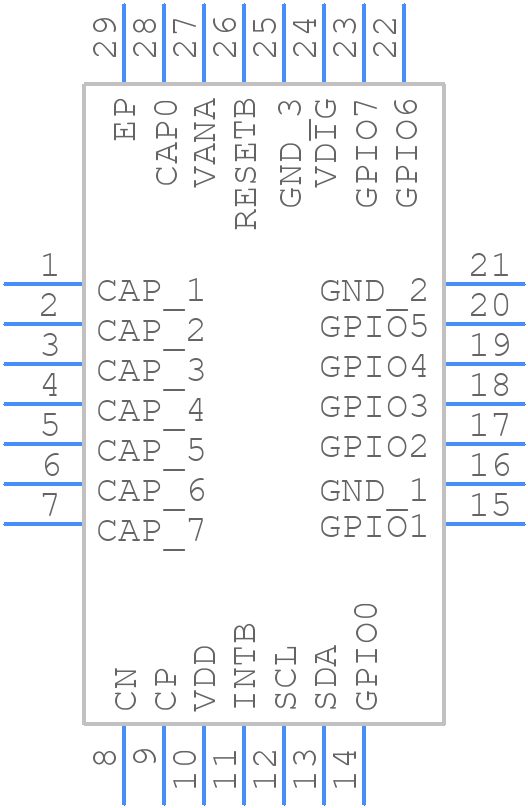

Use the download button to access the SX8636I05AULTRT schematic symbol, PCB footprint, and 3D model.
