Part Image

SX8652IWLTRT - SEMTECH

Description: Touch Screen Controllers 5-WIRE RESISTIVE TOUCH SCREEN

Download SX8652IWLTRT Model

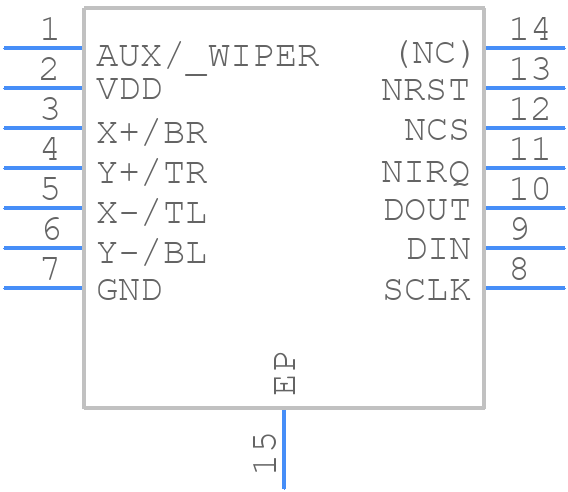

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SX8652IWLTRT - SEMTECH PCB footprint - Small Outline No-lead - Small Outline No-lead - SX8652IWLTRT
click to zoom
3D Models
SX8652IWLTRT - SEMTECH  - 3D model - Small Outline No-lead - SX8652IWLTRT
click to zoom

SX8652IWLTRT Details

  • Manufacturer Part Number:

    SX8652IWLTRT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    4 X 3 MM, HALOGEN FREE AND ROHS COMPLIANT, DFN-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

SX8652IWLTRT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use a 50-ohm impedance-controlled line to the antenna.
  • Implement frequency hopping, use a high-quality antenna, and consider using a shield around the module to reduce electromagnetic interference (EMI).
  • The maximum transmission power is +20 dBm (100 mW) for the 868 MHz and 915 MHz frequency bands.
  • Use the low-power mode (LP) by setting the LP bit in the configuration register. This reduces the current consumption to around 1.5 mA.
  • A quarter-wave monopole antenna (around 8.5 cm long) or a dipole antenna (around 17 cm long) is recommended for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SX8652IWLTRT Overview

Use the download button to access the SX8652IWLTRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SX865, or try a keyword search, such as Cellular Telephone Circuits
