SX9320ICSTRT - SEMTECH

Description: Proximity Sensors PerSe Connect, High Performance 2-Channel SAR Sensor

Download SX9320ICSTRT Model

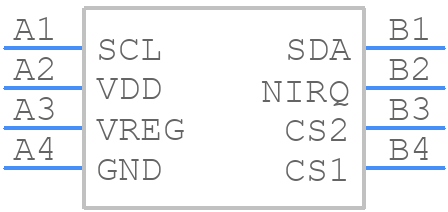

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SX9320ICSTRT - SEMTECH PCB footprint - BGA - BGA - WLCSP-8
click to zoom
3D Models
SX9320ICSTRT - SEMTECH  - 3D model - BGA - WLCSP-8
click to zoom

SX9320ICSTRT Details

  • Manufacturer Part Number:

    SX9320ICSTRT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-8

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Semtech Corporation

  • Body Breadth:

    0.92 mm

  • Body Height:

    0.37 mm

  • Body Length or Diameter:

    1.69 mm

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Termination Type:

    SOLDER
