SX9500IULTRT - SEMTECH

Description: Capacitive Touch Sensors 4-CH PROX SEN W/ I2C

Download SX9500IULTRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

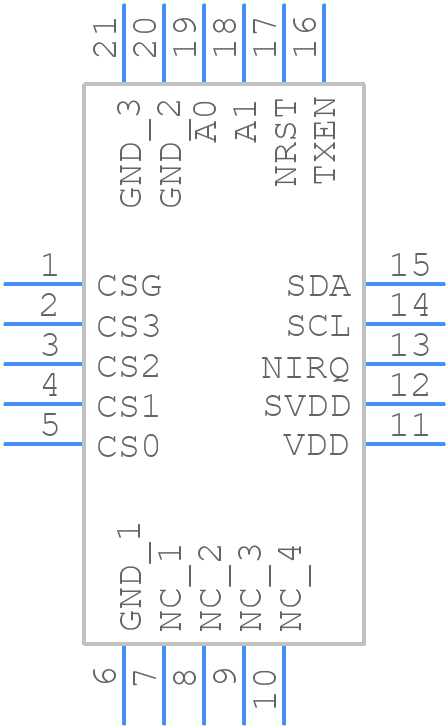

SX9500IULTRT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
SX9500IULTRT - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-UT 20-pin
click to zoom
3D Models
SX9500IULTRT - SEMTECH - 3D model - Quad Flat No-Lead - QFN-UT 20-pin
click to zoom

SX9500IULTRT Details

  • Manufacturer Part Number:

    SX9500IULTRT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, HALOGEN FREE AND ROHS COMPLIANT, QFN-20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

SX9500IULTRT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use a 50-ohm impedance-controlled line to the antenna.
  • Implement a robust frequency hopping scheme, use a high-quality antenna, and consider using a shielded enclosure to reduce electromagnetic interference (EMI).
  • The maximum transmission power is +20 dBm, but this may vary depending on the specific application and regulatory requirements. Consult the datasheet and relevant regulatory bodies for more information.
  • Use the device's built-in power-saving features, such as the low-power mode, and optimize the transmission protocol to minimize the duty cycle. Additionally, consider using a low-power microcontroller and optimizing the system's overall power budget.
  • A quarter-wave monopole antenna or a dipole antenna with a 50-ohm impedance is recommended. The antenna should be designed to operate at the desired frequency band and should be matched to the SX9500IULTRT's output impedance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SX9500IULTRT Overview

Use the download button to access the SX9500IULTRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SX950, or try a keyword search, such as Other Signal Circuits
