- Part Number SXBP-20R5+
- Manufacturer Mini-Circuits
- Pin Count 8
- Part Category Filter
- Package Category Other
- Footprint Name Other - SXBP-20R5+-1
- Released Date Feb 18, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SXBP-20R5+ Details
-
Manufacturer Part Number:
SXBP-20R5+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.59
-
Average Input Power:
0.5 W
-
Center or Cutoff Frequency (fo/fc):
20.5 MHz
-
Filter Type:
BAND PASS FILTER
-
Height:
6.86 mm
-
Input Impedance:
50 OHM
SXBP-20R5+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
-
Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help engineers design a matching network for their specific application.
-
While the datasheet specifies a maximum input power of +20 dBm, the actual power handling capability may be higher depending on the specific application and operating conditions. It's recommended to consult with Mini-Circuits' application engineers for specific guidance on power handling.
-
Yes, the SXBP-20R5+ is designed to meet the requirements of high-reliability and space-constrained applications. Mini-Circuits offers a range of screening and testing options, including MIL-STD-883 and ESCC qualification, to ensure the component meets the necessary standards.
-
Mini-Circuits provides a range of application notes and technical resources on their website, including troubleshooting guides and FAQs. Engineers can also consult with Mini-Circuits' technical support team for assistance with troubleshooting and optimization.
Trust Checks
Expert Contribution
System Verified
Community Approved
SXBP-20R5+ Overview

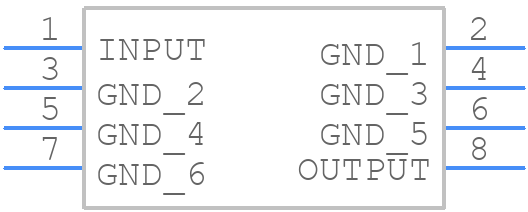

Use the download button to access the SXBP-20R5+ schematic symbol, PCB footprint, and 3D model.
