SXLP-10.7+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Low Pass Filter, DC - 11 MHz, 50ohm

Download SXLP-10.7+ Model

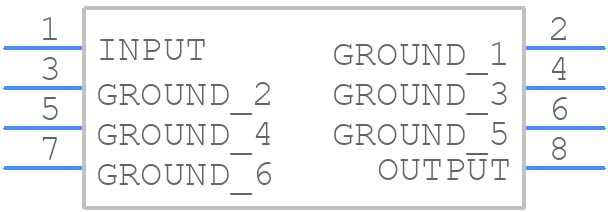

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SXLP-10.7+ - Mini-Circuits PCB footprint - Other - Other - SXLP-10.7+-1
click to zoom
3D Models
SXLP-10.7+ - Mini-Circuits  - 3D model - Other - SXLP-10.7+-1
click to zoom

SXLP-10.7+ Details

  • Manufacturer Part Number:

    SXLP-10.7+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Attenuation Frequency-Max:

    24 MHz

  • Attenuation Frequency-Min:

    19 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    14 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    6.86 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    18.8 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.4

  • Width:

    11.18 mm

SXLP-10.7+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible noise figure, ensure that the input and output impedances are matched to 50 ohms, and the device is biased correctly. Additionally, use a high-quality, low-noise power supply and minimize the length of the input and output transmission lines.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's recommended to derate the device's power dissipation at higher temperatures to ensure reliability and prevent thermal runaway. Consult with Mini-Circuits' application engineers for specific guidance.
  • Yes, the SXLP-10.7+ can be used in a push-pull or balanced configuration to improve linearity and reduce even-order harmonics. However, this requires careful circuit design and layout to ensure proper phasing and impedance matching.
  • Mini-Circuits recommends using a combination of ESD protection devices, such as TVS diodes and resistors, to protect the SXLP-10.7+ from electrostatic discharge. The specific protection scheme will depend on the application and operating environment.
