For optimal performance, it's recommended to follow Microchip's PCB layout guidelines, which include using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
To ensure reliable operation across the entire operating temperature range, follow proper PCB design and layout guidelines, use a reliable power supply, and ensure that the device is properly soldered and mounted. Additionally, consider using thermal protection devices and implementing temperature monitoring and compensation mechanisms in your design.
The SY100EL15LZG-TR is a high-speed, low-power ECL-to-LVPECL translator, making it suitable for applications such as clock distribution, data conversion, and signal conditioning in high-speed data acquisition systems, telecommunications equipment, and high-performance computing systems.
To troubleshoot common issues, start by verifying the power supply and clock signal integrity. Check for proper termination, signal attenuation, and noise coupling. Use oscilloscopes and logic analyzers to debug signal waveforms and timing. Consult Microchip's application notes and technical support resources for guidance on specific issues.
The SY100EL15LZG-TR offers a unique combination of high-speed performance, low power consumption, and small package size. Compared to similar devices from other manufacturers, it may have advantages in terms of power consumption, signal integrity, or package options. Consult the datasheet and manufacturer's documentation for a detailed comparison.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SY100EL15LZG-TR Overview

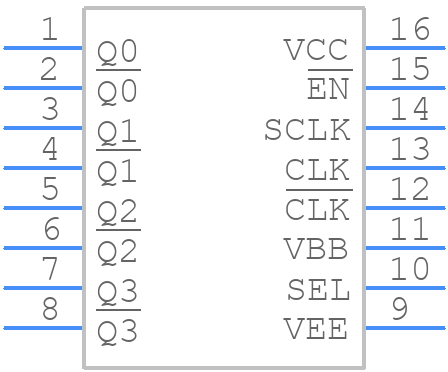

Use the download button to access the SY100EL15LZG-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY100,
or try a keyword search, such as Clock Drivers
