Microchip provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure signal integrity.
The SY100EL33LZG requires a specific power-up and power-down sequence to ensure proper operation. It's recommended to power up the VCC pin first, followed by the VEE pin, and then the input signals. During power-down, the sequence should be reversed.
While the datasheet specifies a maximum operating frequency of 3.2 GHz, the actual frequency limit may vary depending on the specific application, PCB layout, and signal quality. It's recommended to perform thorough testing and characterization to determine the maximum operating frequency for your specific use case.
To optimize the SY100EL33LZG for low-power operation, consider reducing the supply voltage, using a lower-frequency clock signal, and minimizing the input signal amplitude. Additionally, you can use the device's built-in power-down mode to reduce power consumption when not in use.
The SY100EL33LZG is a high-frequency device that can generate significant heat. It's essential to provide adequate thermal management, such as using a heat sink, thermal vias, or a thermally conductive PCB material to ensure the device operates within its recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SY100EL33LZG Overview

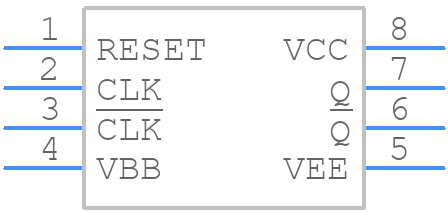

Use the download button to access the SY100EL33LZG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY100,
or try a keyword search, such as Prescaler/Multivibrators
