For optimal performance, it's recommended to follow Microchip's PCB layout guidelines, which include using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
To ensure reliable operation in high-vibration or harsh environments, consider using a ruggedized PCB design, securing the device with screws or adhesive, and using conformal coating to protect against moisture and contaminants. Additionally, ensure that the device is properly soldered and that the PCB is designed to withstand mechanical stress.
To prevent damage or latch-up, follow the recommended power-up and power-down sequencing guidelines outlined in the datasheet. Typically, this involves powering up the device in a specific order (e.g., VCC before VREF) and ensuring that all power supplies are stable before enabling the device.
To troubleshoot and debug issues with the SY100EPT22VKG-TR, use a combination of tools such as oscilloscopes, logic analyzers, and debug software. Check the device's output signals, verify proper power supply and clocking, and consult the datasheet and application notes for guidance on common issues and error codes.
Operating the SY100EPT22VKG-TR outside of its recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even device damage. Ensure that the device is operated within its specified temperature range, voltage supply, and clock frequency to maintain reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SY100EPT22VKG-TR Overview

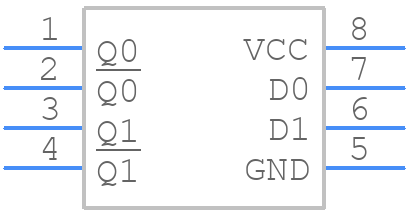

Use the download button to access the SY100EPT22VKG-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY100,
or try a keyword search, such as Level Translators
