SY54020ARMG - Microchip

Description: Buffers & Line Drivers Low Voltage CML 1:4 Fanout Buffer

Download SY54020ARMG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

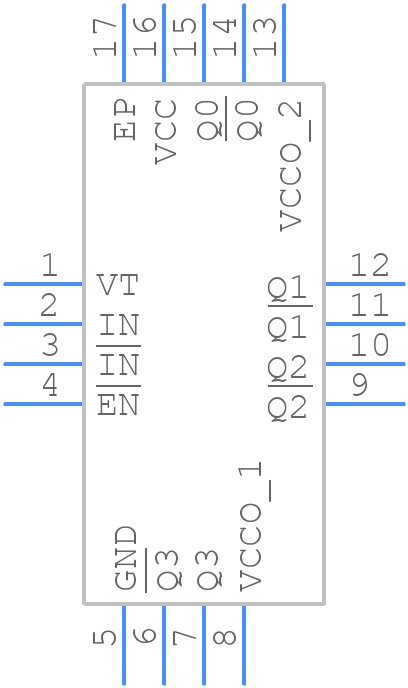

SY54020ARMG - Microchip - PCB symbol
click to zoom
PCB Footprints
SY54020ARMG - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SY54020ARMG
click to zoom
3D Models
SY54020ARMG - Microchip - 3D model - Quad Flat No-Lead - SY54020ARMG
click to zoom

SY54020ARMG Details

  • Manufacturer Part Number:

    SY54020ARMG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3X 3 MM, LEAD FREE, MLF-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Family:

    S

  • Input Conditioning:

    DIFFERENTIAL LATCHED

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.32 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.02 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

  • fmax-Min:

    3200 MHz

SY54020ARMG Frequently Asked Questions (FAQs)

  • A good PCB layout for the SY54020ARMG involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The SY54020ARMG requires a stable power supply with minimal noise and ripple. Use a high-quality power supply with a low output impedance, and decouple the device with 0.1uF and 10uF capacitors placed close to the device. Ensure the power supply can provide the required current.
  • The SY54020ARMG can support clock frequencies up to 2.5 GHz. However, the actual maximum frequency may vary depending on the specific application, PCB layout, and operating conditions.
  • To troubleshoot issues with the SY54020ARMG, start by verifying the power supply and decoupling, then check the clock signal and data transmission. Use oscilloscopes and logic analyzers to debug the signal integrity and timing. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The SY54020ARMG is not specifically designed for radiation-hardened or high-reliability applications. However, Microchip Technology Inc. offers other products that are designed for such applications. Consult with Microchip's sales team or application engineers to determine the best solution for your specific requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SY54020ARMG Overview

Use the download button to access the SY54020ARMG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY540, or try a keyword search, such as Clock Drivers
